Cab Hektor 2 PCB Off Cut Separator

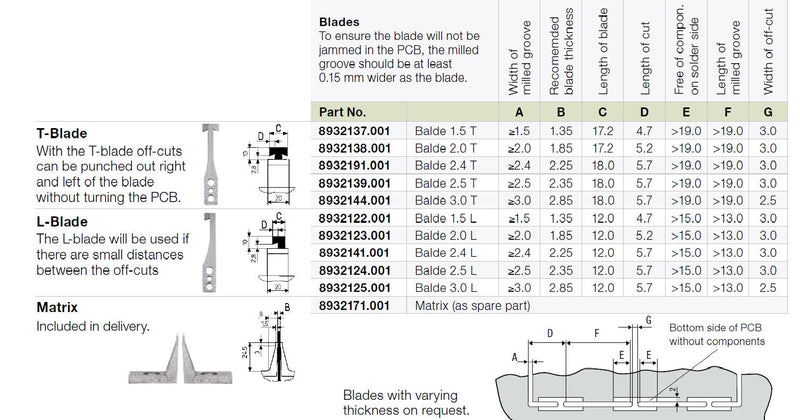

Hektor separates milled PCBs carefully and fast. The off-cut material is removed smoothly and precisely. The matrix consists of two parts. This ensures easy and cost-saving change of the blades. Compressed air is used for the separationprocess. The operating pressure can be set on the machine. When the foot switch is pressed, the off-cut is punched out. The off-cuts are collected in the collecting box. When the gate is opened the waste material can be extracted. Blades The blades are manufactured of special steel. Each version is available in five standard widths. To ensure the blade will not be jammed in thePCB, the blade should be at least 0.15 mm smaller as the milled groove. We produce intermediate sizes on your demand. Safe Operation The PCB is slipped with its milled groove over the blade and is placed onto the matrix. The offcut is pulled under the blade. When the foot switch is pressed, the off-cut is punched out and the waste material is collected inside the machine. With the T-blade off-cuts can be punched out right and left of the blade without turning the A range of different width blades from 1.5 to 3.0mm are available BLADES not included. SOLD SEPARATELY Matrix included in delivery Features & Benefits: *Precise Off-Cut Separation: Removes PCB off-cut material quickly and accurately, minimizing waste and handling errors. *Dual-Part Matrix: Easy and cost-saving blade replacement, reducing downtime. *Compressed Air Operation: Adjustable operating pressure allows precise control for different PCB thicknesses. *Foot Switch Activation: Simple, hands-free operation to punch out off-cuts efficiently. *Waste Collection System: Off-cuts are collected in a box for easy disposal. *Versatile Blade Compatibility: Accepts a range of blades (1.5 mm – 3.0 mm width) to match different milled grooves. *Safe Operation: PCB slides over the blade and under the matrix for controlled separation. T-blade allows off-cuts to be punched on both sides without turning the PCB. Specifications: *Manufacturer: Cab *Part Number: CAB8932145 *Type: PCB Off Cut Separator *Operation: Compressed air *Blade Widths Available: 1.5 mm – 3.0 mm (sold separately) *Matrix: Dual-part (included in delivery) *Blade Material: Special steel (not included) *Foot Switch: Yes *Waste Collection: Integrated collecting box *T-Blade Capability: Punch out off-cuts on left and right without turning PCB Applications: *Electronics manufacturing for PCB separation. *PCB prototyping and small-batch production. *Precision electronics assembly. *Waste management of PCB off-cut material. *Laboratories and workshops handling milled PCBs.
