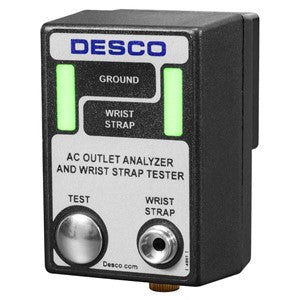

Desco AC Outlet Analyzer & Wrist Strap Tester - DES98134
Desco AC Outlet Analyzer & Wrist Strap Tester - DES98134

Desco AC Outlet Analyzer & Wrist Strap Tester - DES98134

SKU DES98134
by Desco
Order In
$0.00 - $0.00
$0.00
$0.00
$0.00 - $0.00
$0.00
Southeast Asian Outlet Analyzer, Banana Jack, and Wrist Strap Tester Verifies proper AC outlet wiring, provides a grounding point, and tests the path-to-ground integrity of an operator’s wrist strap NEW Ground Terminal for #8 Rings Provides a verified ground point for mats, carts, tools, and other items. Connect with the 09842 Multi-Ground Hub. Tests Operator’s Path-To-Ground; 750 kilohms to 35 megohms per ANSI/ESD S20.20 Wrist Strap Limits Determines that an operator’s wrist strap is functioning correctly Visual and Audible Indicators Displays pass/fail conditions for the outlet and pass condition for the wrist strap NIST Calibrated Original Calibration Certificate can be Downloaded Here Calibrated with accepted procedures and standards traceable to the National Institute of Standards and Technology. For more information on the calibration of Desco products, see Calibration. Made in the United States of America
Features & Benefits

• AC Outlet Verification: Confirms correct wiring of electrical outlets to ensure safe operation.• Wrist Strap Testing: Measures operator path-to-ground resistance from 750 kilohms to 35 megohms according to ANSI/ESD S20.20 standards.• Ground Terminal for #8 Rings: Provides a verified ground point for mats, carts, tools, and other ESD-sensitive items; compatible with Desco Multi-Ground Hub.• Visual & Audible Indicators: Displays pass/fail conditions for outlets and wrist straps, providing instant feedback.• NIST Calibrated: Original calibration certificate traceable to the National Institute of Standards and Technology.• Reliable & Safe: Ensures wrist straps and grounding systems function correctly, preventing ESD damage.• Made in USA: Quality manufacturing under strict standards.

Specifications

• Manufacturer: Desco• Part Number: DES98134• Product Type: AC Outlet Analyzer & Wrist Strap Tester• Wrist Strap Test Range: 750 kO – 35 MO• Indicators: Visual (LED) and Audible (beeper)• Ground Terminal: For #8 rings; compatible with Desco Multi-Ground Hub• Calibration: NIST traceable• Compliance: ANSI/ESD S20.20• Made in: USA

More Information

Applications• Verifying proper AC outlet wiring in ESD-controlled workstations• Testing wrist straps for operator grounding compliance• Providing a verified ground point for mats, carts, and tools• Ensuring safety and ESD compliance in electronics manufacturing, cleanrooms, and repair areas

Technical Data Sheet (TDS)
