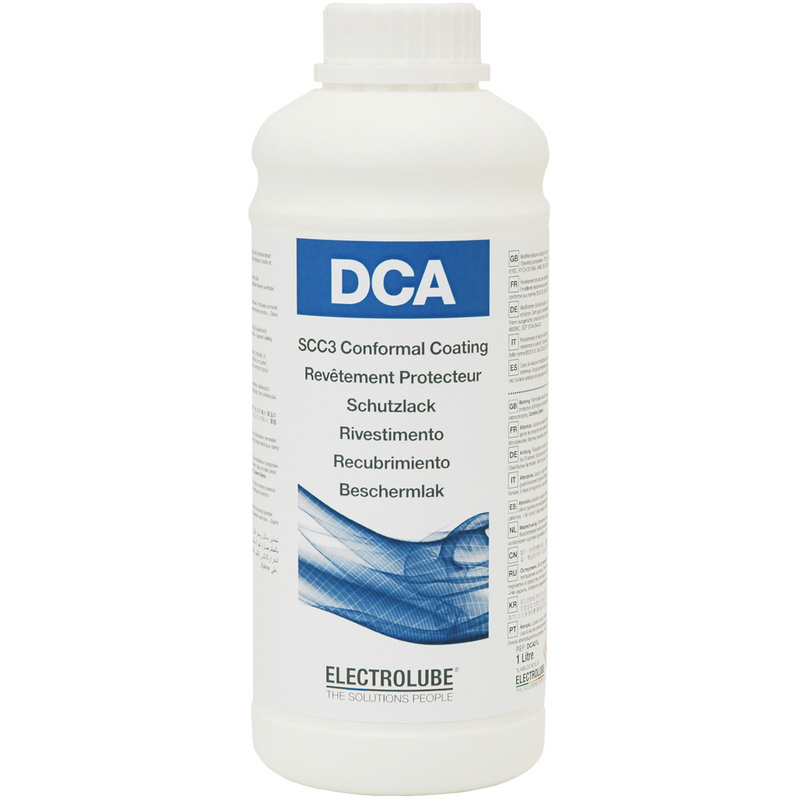

Electrolube SCC3 Silicone Conformal Coating 1 Litr - ELDCA01L
Electrolube SCC3 Silicone Conformal Coating 1 Litr - ELDCA01L
Electrolube SCC3 Silicone Conformal Coating 1 Litr - ELDCA01L
Electrolube SCC3 Silicone Conformal Coating 1 Litr - ELDCA01L
Electrolube SCC3 Silicone Conformal Coating 1 Litr - ELDCA01L

Electrolube SCC3 Silicone Conformal Coating 1 Litr - ELDCA01L

SKU ELDCA01L
by Electrolube
Order In
$0.00 - $0.00
$0.00
$0.00
$0.00 - $0.00
$0.00
DCA is a flexible, transparent and unique modified silicone conformal coating (SCC3) specifically designed for the protection of electronic circuitry. It has been formulated to meet the highest defence standards in both Europe and the United States. It holds approvals including the British Ministry of Defence (MOD) DEF-STAN 59/47 Issue 4, and Underwriters Laboratories UL746E-QMJU Approvals UL746E-QMJU2: Approved File Number: E138403 DEF-STAN 59/47 (Issue 4): Yes IPC-CC-830: Meets approval NATO Stock Numbers: 6850996642823 (DCA05L) 6850992530057 (DCA200H)
Features & Benefits

High specification flexible Modified Alkyd resin conformal coatingMay be ambient cured or heat cured for enhanced performanceExcellent chemical and solvent resistance when heat curedMay be soldered through for reworkExtremely wide operating temperature rangeresistant to many solvents used within aerospace and automotive industriesRoHS CompliantCan be reworked using specialist removal product, Electrolube CCRG

Specifications

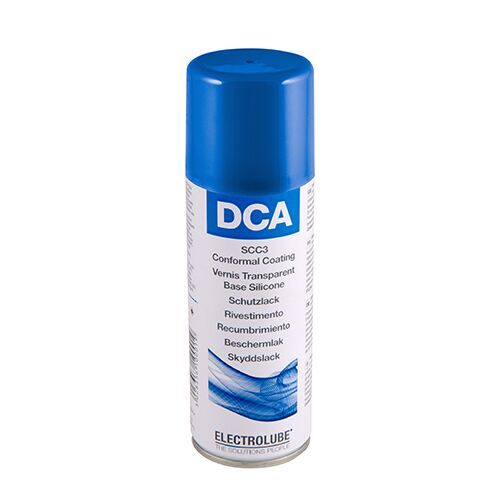

Liquid Properties Appearance: Clear Pale StrawPackaging Size: 1Litre Bottle (picture shows aerosol version)Density @ 20°C (g/ml): 0.97 (Bulk), 0.78 (Aerosol)VOC Content: 63% (Bulk) 73% (Aerosol)Flash Point: 27°C (Bulk), <23°C (Aerosol)Solids content: 37% (Bulk), 27% (Aerosol)Viscosity @ 20°C (mPa s): 180 - 250 (Bulk)Touch Dry: 50 - 55 minutesRecommended Curing Schedule*: 2 Hours @ 20°C followed by: 2 - 24 Hours @ 90°C to 120°C(Maximum Solvent Resistance Achieved @ 120°C; Ambient Curing Schedule: 24 Hours @ 20-25°C)Coverage @ 25 µm: 14.8m² per litre (Bulk), 2.16m² (200ml Aerosol)Cured Film Coating Colour: ColourlessOperating Temperature Range: -70°C to +200°CFlammability: UL94 V-1Thermal Cycling (IPC-CC-830): Meets approvalCoefficient of Expansion: 90ppmDielectric Strength: 90 kV/mmDielectric Constant: 3.95 @ 1 MHzInsulation Resistance: 1 x 1015 Ohm (DEF-STAN 59/47)Dissipation Factor (@1 MHz, 25°C): 0.037Moisture Resistance (IPC-CC-830): Meets approvalApprovals UL746E-QMJU2: Approved File Number: E138403DEF-STAN 59/47 (Issue 4): YesIPC-CC-830: Meets approvalNATO Stock Numbers: 6850996642823 (DCA05L) 6850992530057 (DCA200H)
