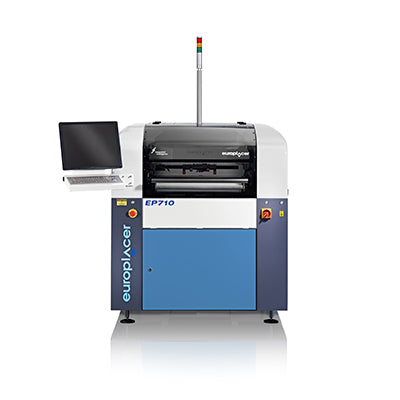

Europlacer EP710 High-Flexibility Auto-Dispense Printer
The EP700/EP710avi stencil printer combines Europlacer/Speedprints commitment to high performance and reliability with outstanding value. The system has been designed to cope with the rigors of high
volume SMT production whilst incorporating the flexibility needed in high-mix, quick product set-up & changeover environments.
The EP700avi has been designed with ease of use, maintenance and low cost of ownership in mind. The system utilises the most advanced drive control technology available, including
1 micron resolution Linear encoders on all Axes, together with a suite of intuitive software that enables total control of the printing process.
The printer is fully equipped, as standard, with many features such as automatic rail width adjust, auto stencil loading and a fully programmable Under Stencil Cleaner.
The EP700/EP710 incorporates 3Dc, an advanced user interface running on WINDOWS XP PRO & VistaTM. In addition to the simple and intuitive nature of the interface, it also provides
comprehensive self diagnostic capabilities, such as production logging and automatic fault report generation which enables ‘on the fly' troubleshooting.
The Under Stencil Cleaner is a highly efficient and fully programmable standard feature of the EP700/ EP710. It may be programmed to be run wet or dry and in any combination thereof.
The vision system utilises a unique twin roving camera ‘Look Down, Look Down' method of automatic vision alignment. This innovative vision system gives Speedprint users the unique
capability of checking for solder paste presence on the stencil before printing. The vision system aligns the PCB with the stencil using fiducial marks and/or PCB/Stencil features.
Standard features
High Precision Axe
1 Micron resolution Linear Encoders
Twin Roving Cameras
Precision Mono-fabrication
Distributed Control Network
Paste on Stencil inspection
Fully automatic Conveyor Adjustment
Programmable Vacuum Stencil Cleaner
Closed Loop Dual Squeegee control
Auto Stencil Load and eject
High Precision Axe
Precision Linear Rail and Belt Drive provides accuracy and reliability
1 Micron resolution Linear Encoders
On all axes for optimum positional accuracy
Twin Roving Cameras
Highly accurate and robust Vision Platform
Precision Mono-fabrication
Precision engineered base structure
Distributed Control Network
Localised axis control reduces cables and increases reliability
3Dc User interface
The simplest and intuitive of User Interfaces
Paste on Stencil inspection
Providing feedback & set up of paste replenishment, a unique feature within the Avi range
Fully automatic Conveyor Adjustment
Ease and flexibility to manage most PCB sizes
Programmable Vacuum Stencil Cleaner
Highly efficient wet and dry stencil cleaning system
Closed Loop Dual Squeegee control
Provides full control of the Print
Auto Stencil Load and eject
Improved speed and ease of product changeover
# Video
https://vimeo.com/371817226
