Fisnar Robot Desktop 3 Axes 200x200mm - FIS4200N.2

SKU FIS4200N.2
by Fisnar
Order In
$0.00 - $0.00
$0.00
Price on Request
$0.00 - $0.00
Price on Request

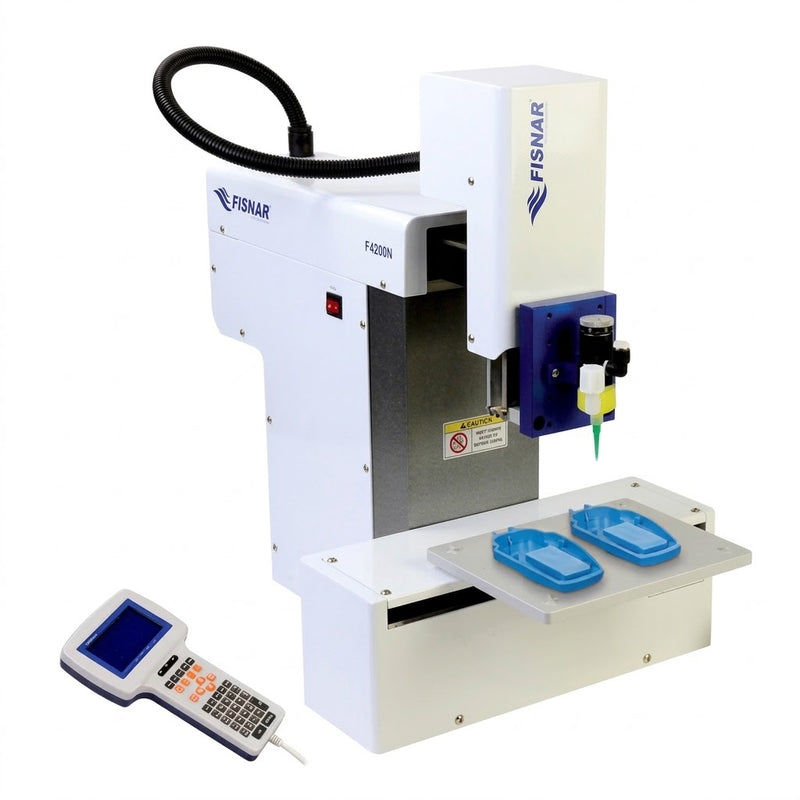

The Fisnar F4200N.2 is a desktop, three-axis dispensing robot designed for automated precision fluid dispensing.
Its 200 Ɨ 200 mm working area supports programmed dispensing paths for repeatable application of adhesives, sealants and other compatible fluids
Features & Benefits

Repeatability of Ā±0.02 mm per axis.Compact design saves bench space.Step-and-repeat functionality.Teach pendant for programming.USB data transfer and backup.

Specifications

Model: F4200N.2Axes: 3Working area (X/Y/Z): 200 Ɨ 200 Ɨ 50 mmMaximum speed (X/Y and Z): 500 / 200 mm/sWorkload: 3 kgZ-axis tool load: 2 kgResolution: 0.001 mm per axisPower: 100-240 VAC, 320 WInterfaces: USB / RS232Dimensions: 324 Ɨ 499 Ɨ 480 mmWeight: 17 kg
