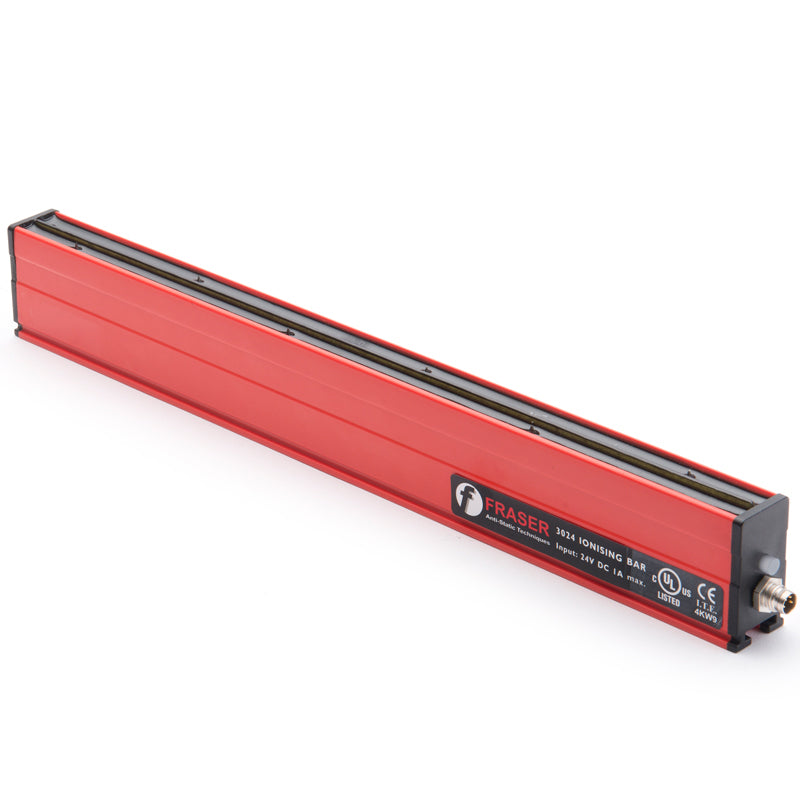

Fraser 3024F Short Range Anti-Static Ionising Bar, 11 Kv, 300mm

High-performance static elimination for medium-range applications (100–500mm)Tungsten emitters with epoxy and FR-ABS housing for long-term durabilityIntegrated 11kV power supply for fast, efficient static neutralisationCleanroom compatible to ISO Class 4Bi-colour LED for local status indication and remote monitoring via 24V signal (‘Bar OK’ and ‘Fault’)Compact profile for easy installation in automated or constrained spacesIP66 fully sealed for protection against dust and moistureCE, CB, and UL certified

Construction: FR-ABS industrial grade extrusion, epoxy resin, tungsten emitters.Dimensions: 22 x 41.5 mm (W x H).Available Lengths: minimum order length 250 mm, then in 50 mm steps to 5000 mm.Weight:1.1 kg/m.Output Voltage: Up to 11 kV supply integrated into bar.Remote Monitor / Local Status Indication: Signals available: ‘Bar OK’ and ‘Fault’. Uses 24 V supply to send signal from the bar to the PLC or other destination. Bi-colour LED on endcap for local status indication.Electrical Input: 24 V DC (21-28 V), maximum current required 0.5 A. M8 x 4-pin connector.The M8 x 4-core cable must be ordered separately.Environmental: 0 - 55 °C, 70 % rH non-condensing max. IP66. Fully sealed.Certification: CE, CB and UL. Cleanroom classification to ISO Class 4.Options: 100 - 250 V AC-DC 24 V Power Supply (Part No: E3024-PSU).Length: 300mm#Includes1 x 30241F-300 Ionising BarPower Supply (incl. power cord) sold separately p/n FRA3024PSU
