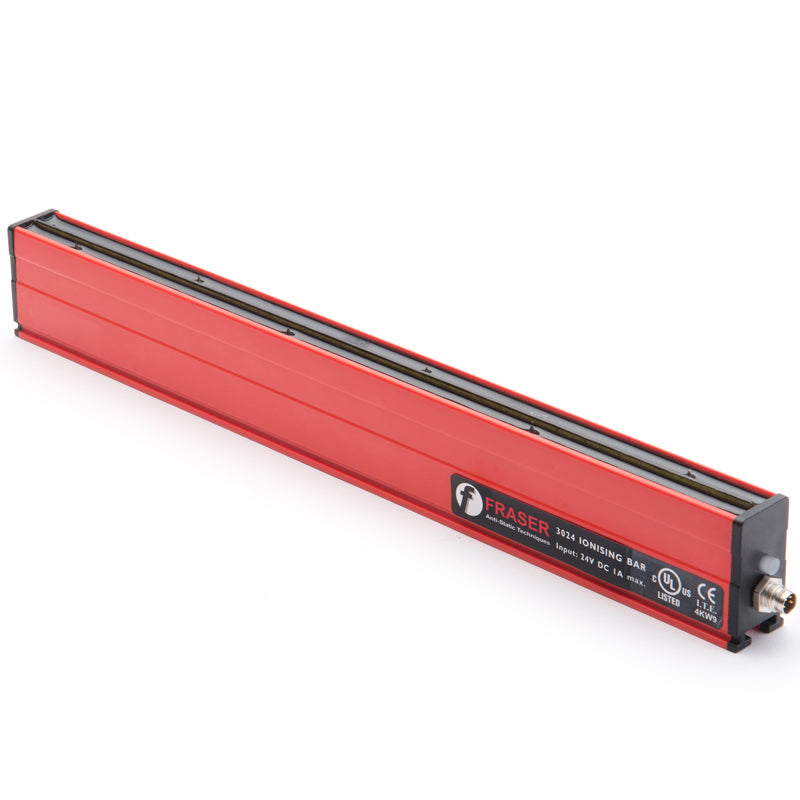

Fraser 3024F Short Range Anti-Static Ionising Bar, 11 Kv, 350mm

Efficient static elimination for short-range applicationsIntegrated 11kV power supply for rapid neutralisationTungsten emitters in FR-ABS and epoxy housing for durabilityCompact profile for easy integration into machineryCleanroom compatible to ISO Class 4Bi-colour LED for local status indication and remote monitoring via 24V signal (‘Bar OK’ and ‘Fault’)IP66 fully sealed for protection against dust and moistureCE, CB, and UL certified

Construction: FR-ABS industrial grade extrusion, epoxy resin, tungsten emitters.Dimensions: 22 x 41.5 mm (W x H).Available Lengths: minimum order length 250 mm, then in 50 mm steps to 5000 mm.Weight:1.1 kg/m.Output Voltage: Up to 11 kV supply integrated into bar.Remote Monitor / Local Status Indication: Signals available: ‘Bar OK’ and ‘Fault’. Uses 24 V supply to send signal from the bar to the PLC or other destination. Bi-colour LED on endcap for local status indication.Electrical Input: 24 V DC (21-28 V), maximum current required 0.5 A. M8 x 4-pin connector.The M8 x 4-core cable must be ordered separately.Environmental: 0 - 55 °C, 70 % rH non-condensing max. IP66. Fully sealed.Certification: CE, CB and UL. Cleanroom classification to ISO Class 4.Options: 100 - 250 V AC-DC 24 V Power Supply (Part No: E3024-PSU).Length: 350mm#Includes1 x 30241F-300 Ionising BarPower Supply (incl. power cord) sold separately p/n FRA3024PSU
