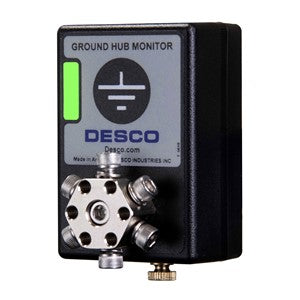

Ground Hub Monitor, Asia - DES19204
Ground Hub Monitor, Asia - DES19204

Ground Hub Monitor, Asia - DES19204

SKU DES19204
by Desco
Order In
$0.00 - $0.00
$0.00
$0.00
$0.00 - $0.00
$0.00
Ground Hub Monitor, Asia Southeast Asian Outlet Monitor (Type G Plug) Monitors proper AC outlet wiring and meets the ANSI/ESD S6.1 requirement for verifying wiring orientation Six Banana Jacks and Six Screws for #8 Ring Terminals Provides numerous groundable points for wrist straps, mats, carts, tools, and other items NEW Quick Connect Terminal for #8 Rings Provides a verified ground point for mats, carts, tools, and other items. Connect with the 09842 Multi-Ground Hub. Visual and Audible Indicators Displays pass/fail conditions for the outlet for grounding purposes of an ESD Control Plan NIST Calibrated Original Calibration Certificate can be Downloaded Here Calibrated with accepted procedures and standards traceable to the National Institute of Standards and Technology.
Features & Benefits

*Type G Southeast Asian Outlet Monitor. Ensures compatibility with regional power outlets used across Asia.*ANSI/ESD S6.1 Compliant Wiring Verification. Confirms correct AC outlet wiring orientation for ESD control plans.*Multiple Ground Connection Points. Six banana jacks and six #8 ring terminal screws allow simultaneous grounding of multiple ESD items.*Quick Connect Terminal for #8 Rings. Simplifies and speeds up installation of ring terminal connections.*Verified Ground Point Output. Provides a dependable grounding reference for mats, carts, tools, and other ESD accessories.*Compatibility with 09842 Multi-Ground Hub. Expands grounding capability when connected to the Desco multi-ground system.*Visual and Audible Status Indicators. Clearly displays pass/fail conditions for grounding verification.*NIST-Traceable Calibration. Calibrated using accepted procedures with standards traceable to the National Institute of Standards and Technology.*Downloadable Calibration Certificate. Original NIST calibration certificate available for compliance documentation.

Specifications

*Manufacturer: Desco*Part Number: DES19204*Product Type: Ground Hub Monitor*Outlet Type: Type G (Southeast Asia)*Ground Connections: *Six banana jacks *Six screws for #8 ring terminals*Terminal Type: Quick Connect terminal for #8 rings*Monitoring Function: AC outlet wiring orientation and grounding status*Indicators: Visual and audible pass/fail alerts*Standards Compliance: ANSI/ESD S6.1*Calibration: NIST traceable*Calibration Certificate: Downloadable original certificate

More Information

Applications:*Electronics manufacturing and assembly lines*ESD-protected areas (EPAs)*Electrical and electronics testing workstations*Grounding of wrist straps, ESD mats, carts, and hand tools*Electronics repair and service centers*Automotive electronics assembly and diagnostics*Industrial environments requiring monitored grounding systems

Technical Data Sheet (TDS)
