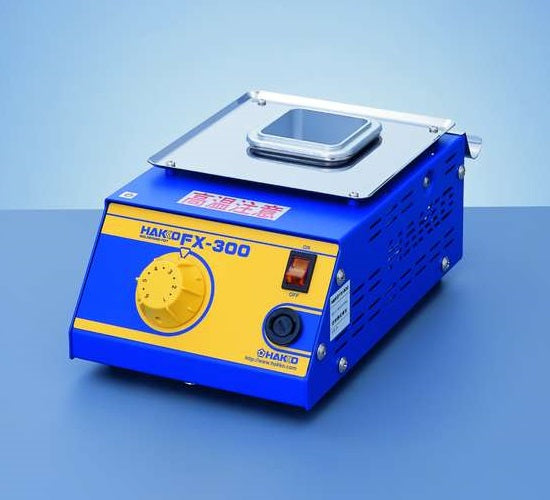

Hakko Solder Pot FX300, Analogue - HKFX300-14
Hakko Solder Pot FX300, Analogue - HKFX300-14
Hakko Solder Pot FX300, Analogue - HKFX300-14

Hakko Solder Pot FX300, Analogue - HKFX300-14

SKU HKFX300-14
by Hakko
Order In
$0.00 - $0.00
$0.00
$0.00
$0.00 - $0.00
$0.00
Hakko Solder Pot for Leaded Solders. To make lead free compatible, a optional specially coated pot can be added. Analog-type low-cost model - Lead-free-solder compatible and compact knob type soldering pot provides quick start-up and easy replacement. - High-temperature specifications with a maximum temperature of 450 °C (when using 50mm x 50mm soldering pot) - Start-up time is reduced by 10 minutes or more compared to conventional analogue soldering pot (HAKKO 96). - Temperature is adjustable even during work. - Temperature can be adjusted by just turning a knob. - The pot can be easily replaced by just loosening a screw. One unit can be used for various applications by changing pots for each solder type or by using pots of different sizes (50mm x 50mm or 75mm x 75mm square). Special Coating Solder Pot: The special coating is for getting a long life by preventing the corrosion of the solder pot. We confirmed that the special coating solder pot had five times longer life than the standard one by our anti-corrosion test. It effects on both lead-free solder and solder with lead (eutectic). *Because the anti-corrosion test was done by our way, longevity of solder pot may be different according to the usage condition.
Features & Benefits

Analogue temperature control with simple knob adjustment for easy operation.Leaded-solder compatible as standard, with optional specially coated pot for lead-free use.High maximum temperature up to 450 °C when using a 50 mm × 50 mm solder pot.Faster start-up time, reduced by 10 minutes or more compared to older analogue models.Temperature can be adjusted during operation without interrupting work.Compact design suitable for bench and production environments.Interchangeable solder pots allow one unit to support multiple solder types or pot sizes.Quick and easy pot replacement by loosening a single screw.Optional special coating solder pot provides significantly longer service life by resisting corrosion.

Specifications

Manufacturer: HakkoPart number: HKFX300-14Product type: Analogue solder potTemperature range: Adjustable, up to 450 °C (with 50 mm × 50 mm pot)Solder compatibility: Leaded solder (standard), lead-free solder with optional special coating potControl type: Analogue knob controlPot compatibility: 50 mm × 50 mm square pot, 75 mm × 75 mm square pot (interchangeable)Pot replacement method: Screw-mounted, tool-assistedOperating design: Bench-top, compact form factor

Technical Data Sheet (TDS)
