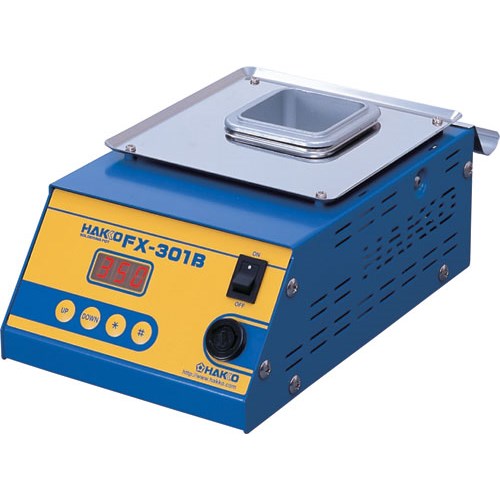

Hakko Solder Pot FX301B, Digital - HKFX301B-14

SKU HKFX301B-14
by Hakko
Original price $0.00 - Original price $0.00
Original price $0.00
$1,390.00
$1,390.00 - $1,390.00
Current price $1,390.00
Hakko Solder Pot FX301B-14 Hakko Solder Pot for Leaded Solders. To make lead free compatible, a optional specially coated pot can be added. Digital display ensures reliable temperature control and realizes precise temperature adjustment. ·High-temperature specifications with a maximum temperature of 450 °C (when using 50mm x 50mm soldering pot) ·Start-up time is reduced by 10 minutes or more compared to conventional analogue soldering pot (HAKKO 96). -Temperature is adjustable even during work. ·Temperature range: 200 - 450°C -Temperature stability: +/- 5°C - Four pre-programmed temperature settings -The pot can be easily replaced by just loosening a screw. One unit can be used for various applications by changing pots for each solder type or by using pots of different sizes (50mm x 50mm or 75mm x 75mm square). Special Coating Solder Pot: The special coating is for getting a long life by preventing the corrosion of the solder pot. We confirmed that the special coating solder pot had five times longer life than the standard one by our anti-corrosion test. It effects on both lead-free solder and solder with lead (eutectic). *Because the anti-corrosion test was done by our way, longevity of solder pot may be different according to the usage condition.

Stock available: 1

Features & Benefits

Digital display ensures reliable temperature monitoring and precise temperature adjustment.Designed for leaded solders, with optional specially coated pot for lead-free compatibility.High maximum operating temperature up to 450 °C when using a 50 mm × 50 mm solder pot.Faster start-up time, reduced by 10 minutes or more compared to conventional analogue solder pots.Temperature can be adjusted during operation without interrupting work.Wide temperature adjustment range from 200 °C to 450 °C.Stable temperature control with accuracy of ±5 °C.Four pre-programmed temperature settings for quick and consistent operation.Interchangeable solder pots allow use with different solder types or pot sizes.Easy solder pot replacement by loosening a single screw.Optional special coating solder pot offers significantly extended service life by resisting corrosion.

Specifications

Manufacturer: HakkoPart number: HKFX301B-14Product type: Digital solder potTemperature range: 200 °C to 450 °CMaximum temperature: 450 °C (with 50 mm × 50 mm solder pot)Temperature stability: ±5 °CControl type: Digital control with displayPreset temperatures: Four programmable settingsSolder compatibility: Leaded solder (standard), lead-free solder with optional special coating potPot compatibility: 50 mm × 50 mm square pot, 75 mm × 75 mm square potPot replacement method: Screw-mounted, tool-assistedOperating design: Bench-top, compact digital unit

Technical Data Sheet (TDS)
