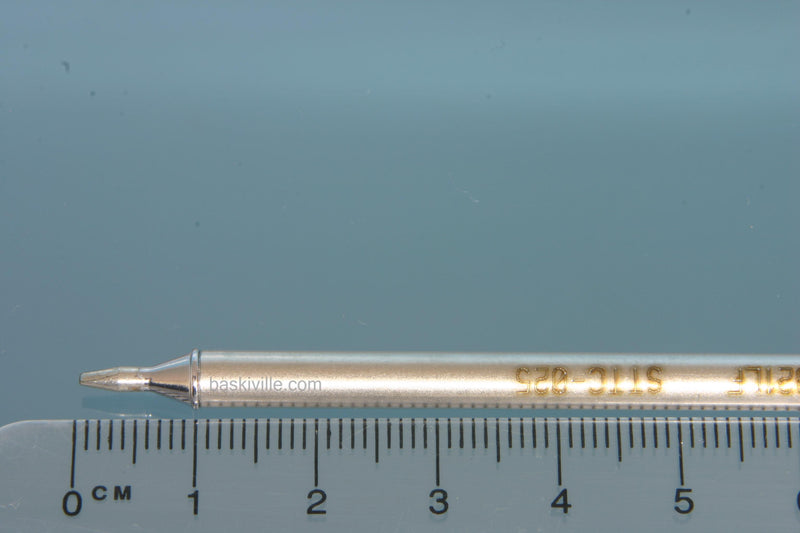

Metcal Solder Tip - 30 Deg Chisel, 04" (1.0mm)

Metcal Solder Tip - 30 Deg Chisel, 04" (1.0mm)

SKU METSTTC-025
by Metcal
$0.00 - $0.00
$0.00
$61.95
$61.95 - $61.95
$61.95
The Oki/Metcal STTC-025 soldering tip cartridge is for use with the MX-500/-5000/-5200 Systems and MX-RM3E and MX-H1-AV Hand-pieces only. * Metcal STTC-025 Features:30 Deg chisel tip cartridge * 04 (1.0mm) tip diameter * 600°F Series * Power tips are designed to deliver heat more efficiently for common hand soldering applications * RoHS Compliant Metcal STTC tips are available in 3 geometry styles: Chisel, Bevel and Conical STTC Temperature series and codes below: 5 = 500 Series for temperature sensitive applications. 0 = 600 Series for temperature sensitive applications. 1 = 700 Series for most standard applications. 8 = 800 Series for Ceramic and high thermal demand applications.

Stock available: 1

Features & Benefits

30° Chisel Tip. Ideal for precise soldering on small to medium pads.1.0 mm Tip Diameter. Suitable for a wide range of SMT and through-hole components.600°F Series. Optimized for temperature-sensitive applications.Power Tip Technology. Efficiently delivers heat to the joint for faster, more consistent soldering.RoHS Compliant. Safe for lead-free electronics manufacturing.Multiple Tip Geometries Available. Chisel, Bevel, and Conical for different soldering needs.

Specifications

Manufacturer: MetcalPart Number: METSTTC-025Compatible Systems: MX-500, MX-5000, MX-5200; MX-RM3E and MX-H1-AV handpiecesTemperature Series: 600°F SeriesTip Type: 30° Chisel CartridgeTip Diameter: 1.0 mm (0.04")Power Tip: YesRoHS Compliant: YesAvailable Tip Geometries: Chisel, Bevel, Conical
