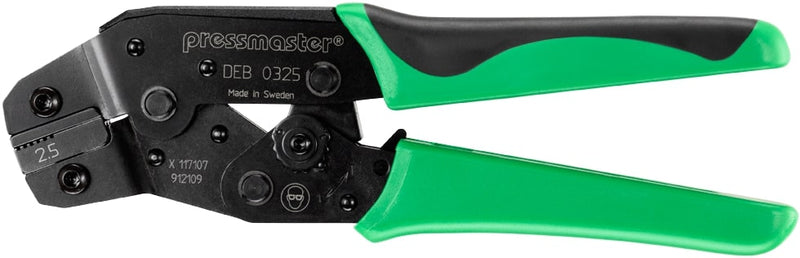

PRESSMASTER CRIMP TOOL (4300-0480)

PRESSMASTER CRIMP TOOL (4300-0480)

SKU PREDEB0325
by Pressmaster
Sold out
$0.00 - $0.00
$0.00
$0.00
$0.00 - $0.00
$0.00
The Pressmaster DEB 0325 is a precision crimping tool used for crimping end sleeves (ferrules) in compliance with DIN 46228 standards. It supports wire sizes of 0.25 mm² to 2.5 mm² (AWG 24 to 14) and has a front-feed configuration with a trapezoidal crimp profile. Made from through-hardened alloy steel, the DEB 0325 offers durability as well as reproducible performance, and it is best suited for professional electrical and industrial uses. Applications: The DEB 0325 crimp tool is particularly suitable for: *Crimping end sleeves (ferrules) onto conductors between 0.25 and 2.5 mm² (AWG 24-14) *Assembling and servicing electrical panels *Factoring industrial wiring harnesses *Field repair and service work calling for consistent crimping of end sleeves
Features & Benefits

*High-Strength Construction: Constructed of through-hardened alloy steel for added durability.*Ergonomic Design: Compatible with both right-handed and left-handed operators.*Full-Cycle Crimp Mechanism: Provides a complete crimp cycle for consistent, dependable crimps.*Ratchet Release Mechanism: Provides for clearing miscrimps and blockages.*Precision Eccentric Adjustment: Offers consistent performance and calibration ability.*Traceability: Every tool has a distinctive serial number for quality control identification.

Specifications

*Manufacturer: Pressmaster*Part Number: DEB 0325 (4300-0480)*Country of Origin: Sweden*Length: 198 mm / 7.8""*Width: 18 mm / 0.71"*Height: 59 mm / 2.32"*Weight: 350 g / 0.77 lb*Wire Size Range: 0.25-2.5 mm² / AWG 24-14*Crimp Dimensions (mm²): 0.25 mm²; 0.5-1.5 mm²; 2.5 mm²*Crimp Dimensions (AWG): AWG 24; AWG 22-16; AWG 14*Connector Type: End sleeves (ferrules), both insulated and uninsulated*Crimp Profile: Trapezoidal (Trapez-Crimp)*Lifespan: 50,000 crimp cycles

More Information

Applications:The DEB 0325 crimp tool is particularly suitable for:*Crimping end sleeves (ferrules) onto conductors between 0.25 and 2.5 mm² (AWG 24-14)*Assembling and servicing electrical panels*Factoring industrial wiring harnesses*Field repair and service work calling for consistent crimping of end sleeves
