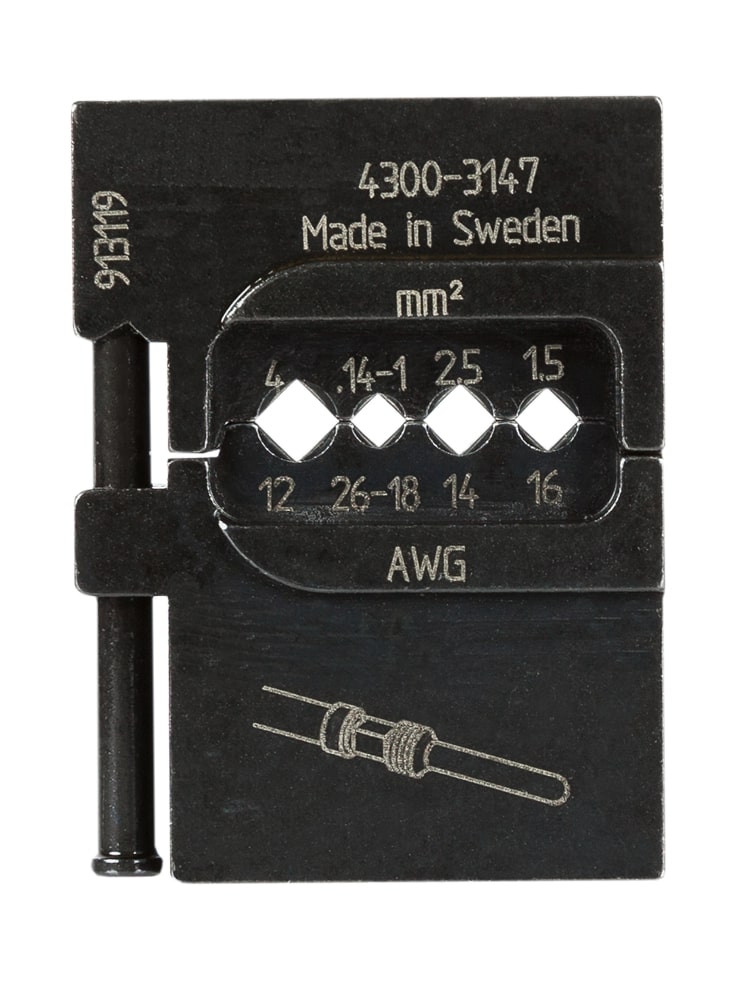

PRESSMASTER DIE SET 26-12AWG

PRESSMASTER DIE SET 26-12AWG

SKU PRE4300-3147
by Pressmaster
Sold out
$0.00 - $0.00
$0.00
$0.00
$0.00 - $0.00
$0.00
The Pressmaster 4300-3147 Die Set is a high-precision interchangeable die designed for use with the Pressmaster MCT (Mobile Crimp Tool) frame. It is specially designed for crimping turned pin connectors and accommodates a broad wire size range of 0.14 mm² to 4.0 mm² (AWG 26-12). Both field and workshop applications are catered to by this die set, which provides consistent, dependable crimping performance in challenging electrical and industrial applications.
Features & Benefits

*Sure Crimping: Provides consistent, precise crimps via parallel action.*Ergonomic Operation: Permits full visibility of the crimp; ideal for one-hand or two-hand operation with minimal force.*Quick Die Changes: Rapid die replacement via built-in release - no special tools needed.*Portable and Compact: Lightweight unit; dies shipped in reusable modular containers.*Long Operational Life: Capable of up to 20,000 crimp cycles for extended application life.

Specifications

*Manufacturer: Pressmaster*Part Number: 4300-3147*Country of Origin: Sweden*Compatible Tool: Pressmaster MCT Frame*Wire Size Range: 0.14-4.0 mm² / AWG 26-12*Crimp Dimensions: 0.14-0.25 mm² / AWG 26-24 0.25-0.5 mm² / AWG 24-20 0.5-1.0 mm² / AWG 20-18 1.5 mm² / AWG 16 2.5 mm² / AWG 14 4.0 mm² / AWG 12*Connector Type: Turned pin connectors*Dimensions: Length: 29 mm / 1.14" Width: 10 mm / 0.39" Height: 39 mm / 1.54" Weight: 72 g / 0.16 lb*Lifespan: 20,000 crimp cycles

More Information

*Crimping turned pin connectors in electronic and electrical systems*Industrial control panel wiring and harness assembly*Electrical maintenance and repair work*On-site crimping in mobile or remote settings
