Pressmaster End Splice Crmp Tool 0.2-6mm - PREMEB0560

Pressmaster End Splice Crmp Tool 0.2-6mm - PREMEB0560

SKU PREMEB0560
by Pressmaster
$0.00 - $0.00
$0.00
$241.00
$241.00 - $241.00
$241.00

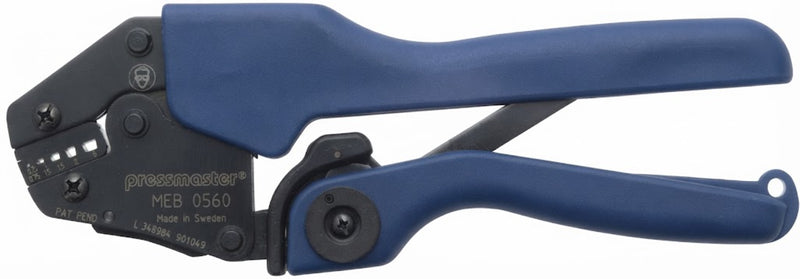

The Pressmaster MEB-0560 is a professional-class ratchet crimping tool for precise and reliable crimping of wire end sleeves (ferrules) in line with DIN 46228 specifications. It crimps wires with sizes between 0.25 and 6.0 mm² (AWG 24-10) and is used for both uninsulated and insulated ferrules. With its ergonomic shape and sturdy build, the MEB-0560 produces consistent and high-quality electrical contacts in numerous applications.

Stock available: 1

Features & Benefits

Crimping Capacity: Accommodates wire sizes from 0.25 to 6.0 mm² (AWG 24-10), thus being suitable for most applications.Crimp Profile: Employs a trapezoidal crimp profile to provide secure and dependable connections.Twin Wire Ferrule Compatibility: Accommodates twin wire ferrules from 2x0.50 to 2x4.0 mm² (2x22 to 2x12 AWG).Ratchet Mechanism: Includes a full-cycle ratchet mechanism that guarantees full crimps each time, with a safety release to remove miscrimps.Ergonomic Handles: Equipped with high-impact plastic grips for easy handling and less hand fatigue.Durable Construction: Constructed from hardened steel for extended lifespan.ROHS Compliant: Compliant with environmental and safety regulations.

Specifications

*Manufacturer: Pressmaster*Part Number: MEB-0560*Crimping Range: Single Wire Ferrules: 0.25-6.0 mm² (AWG 24-10) Twin Wire Ferrules: 2x0.50-2x4.0 mm² (2x22-2x12 AWG)*Crimp Profile: Trapezoidal*Crimping Mechanism: Ratchet*Materials: Frame: Hardened Steel Grips: High-Impact PlasticCompliance: ROHS Compliant
