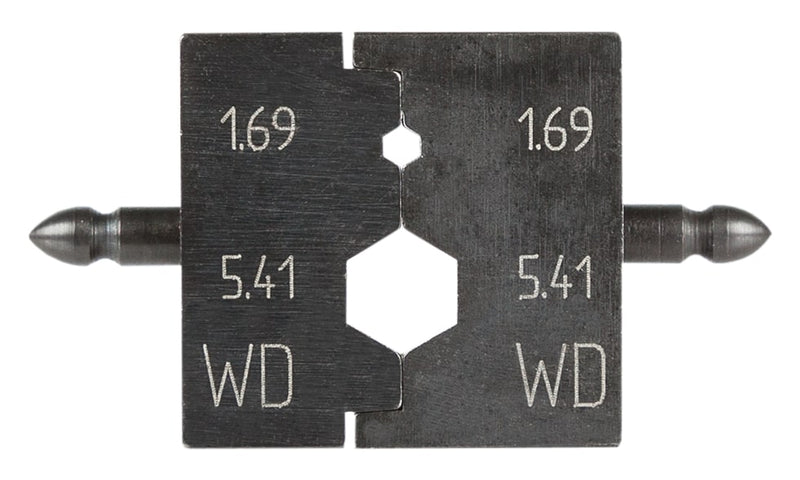

Pressmaster Precision die - 1.69/5.41 mm hex (4300-1070K) - PREPCC5310-11

SKU PREPCC5310-11
by Pressmaster
Order In
$0.00 - $0.00
$0.00
Price on Request
$0.00 - $0.00
Price on Request
PCC 5310/11 WD

PCC-5310 Die set with nest 1.69 mm, 5.41 mm/.067'', .213'', HEX-Crimp. This is one of the interchangeable crimp die sets for the PCC-5310 frame. The user can cover several coaxial connectors in just one tool frame.

*High strength, through hardened alloy steel construction
*Full cycle crimp mechanism to ensure consistent, reliable crimp
*Ratchet release mechanism to clear miscrimps and obstructions
*Precision eccentric adjustment for consistent performance and ability to calibrate
*Each tool has a unique serial number for traceability
*The part number is a reference to the die set without frame.
Features & Benefits

*High strength, through hardened alloy steel construction*Full cycle crimp mechanism to ensure consistent, reliable crimp*Ratchet release mechanism to clear miscrimps and obstructions*Precision eccentric adjustment for consistent performance and ability to calibrate*Each tool has a unique serial number for traceability*The part number is a reference to the die set without frame.

Specifications

Length: 38 mm/1.5"Width: 21 mm/0.83"Height: 8 mm/0.31"Weight: 30 gr/0.07 lbCrimp dimensions mm/mm2:1.69 mm HEX/5.41 mm HEXCrimp dimensions inch/AWG:0.067/0.213Connector: Coaxial connectorDescription: For type BT connectors.Life span, cycles: 50,000Cables: RG142B/U, RG223/U, RG302/U, RG58C/U
