ProtektivePak InPlant Handler, 30 Cells, 89x121x19 - DES37224
ProtektivePak InPlant Handler, 30 Cells, 89x121x19 - DES37224
ProtektivePak InPlant Handler, 30 Cells, 89x121x19 - DES37224

ProtektivePak InPlant Handler, 30 Cells, 89x121x19 - DES37224

SKU DES37224
by Baskiville
Order In
$0.00 - $0.00
$0.00
$0.00
$0.00 - $0.00
$0.00

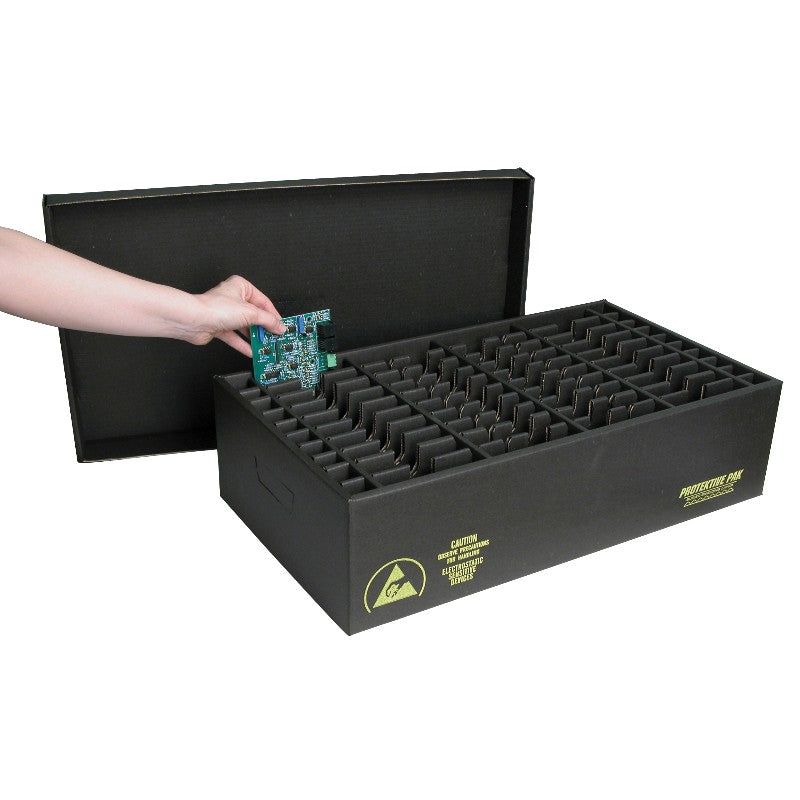

ProtektivePak In Plant Handler, 30 Cells, 89mm x 121mm x 19mm ESD In-Plant Handler. Protective packaging marked with an ESD Protective Symbol. Traceability to the packaging manufacturer and to the manufacturer's date/lot code information. The date/lot code should allow traceability to quality control information pertaining to the manufacture of the specific lot of packaging." (ANSI/ESD S541 section 8.2.1 Material Identification and section 8.2.3 Traceability
Features & Benefits

Shields ESD sensitive items from charges and electrostatic discharges (with lid in place)Many sizes available for optimal fit of your product.Constructed of impregnated corrugated material for greater durabilityStatic dissipative surface resistance of 1 x 106 to < 1 x 109 ohms per ANSI/ESD STM11.11Buried shielding layer minimizes the potential of sloughing and abrasion contaminationEasy assembly without the need for tape, glue, or staplesMade from 100% recycled material and is 100% recyclableLid Included to shield ESD sensitive contentsMade in the United States of America

Specifications

30 Cells, 89mm x 121mm x 19mmProperties Typical Values Test Procedures/MethodSurface Resistance 1 x 106 to < 1 x 109 ohms ANSI/ESD STM11.11Discharge Shielding < 50 Nano Joules ANSI/ESD STM 11.31Sloughing Test Negligible surface damage at 10 cycles and <5% of surface ASTM D4060 at 70 rpm with CS-17 abrasive-coated damage at 200 cycles in Taber Abrasion Test. wheels and 1000 grams load No conductive particles abrased from surface Rockwell International Test Report of January 8, 1992Recyclability Complete recyclability of package Rockwell International Test Report of January 8, 1992

Operators Manual
