Quick Soldering Station TS2300 150 Watt Output

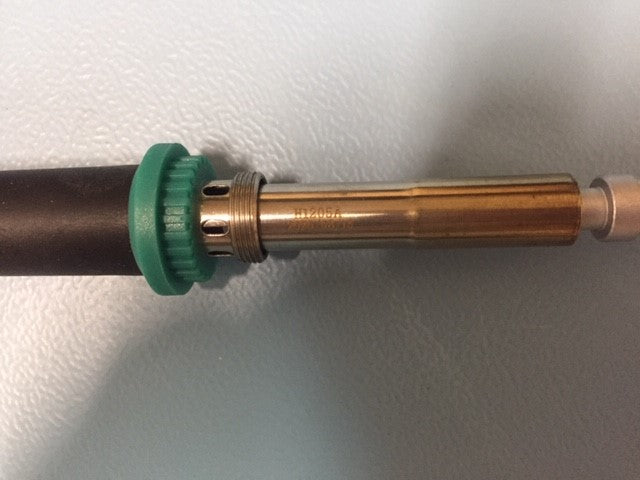

element h1205av2.jpg

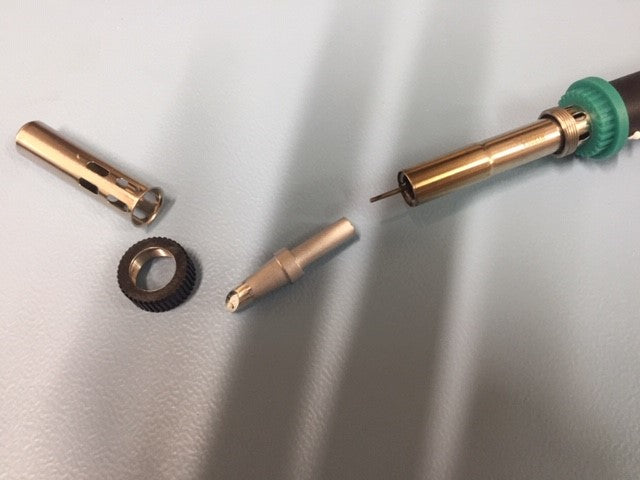

hand piece for ts2300v2.jpg

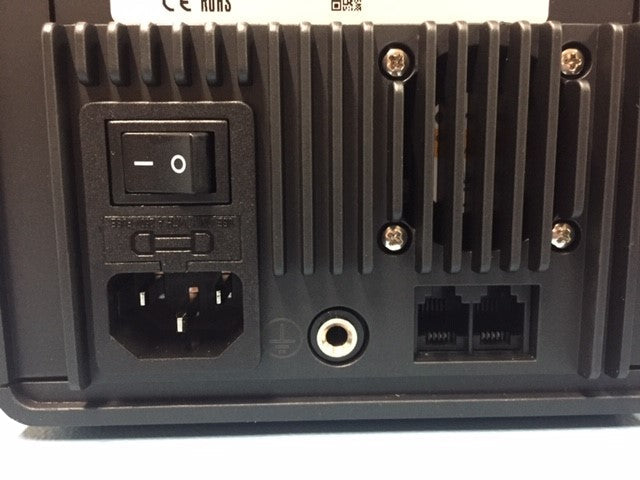

plugs on the back ofts 2300v2.jpg
element h1205av2.jpg
hand piece for ts2300v2.jpg
plugs on the back ofts 2300v2.jpg

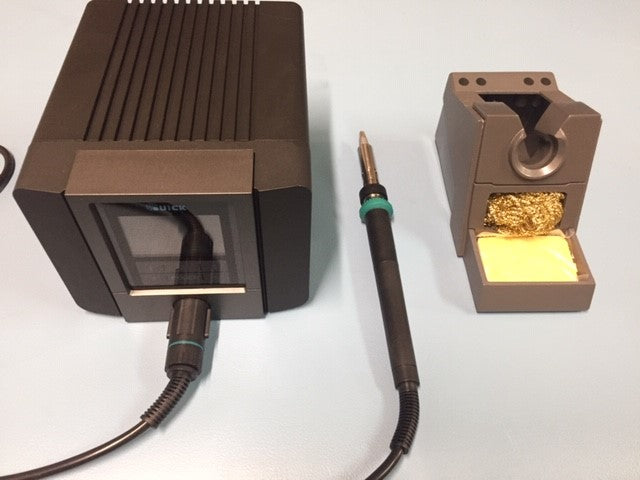

Quick Soldering Station TS2300 150 Watt Output

SKU QUITS2300
by Quick
$0.00 - $0.00
$0.00
$350.00
$350.00 - $350.00
$350.00
150 watt, tempreture controled, soldering station and iron Handle model 906H Heating element HR003-ZZ Soldering tip 503series Power 150Watt Temperature range 200~420°C Tip to ground potential <2mV Tip to ground resistance <2O 1. Preset Process Parameter Controls (3 Modes) for easy process changeover. 2. Big, easy to read LCD. 3. Real-Time Temperature Monitoring . 4. Rapid thermal recovery technology. 5. Quick and easy Solder Tip Replacement. 6. Lightweight solder iron. 7 .ESD Safe, with ESD Monitoring Functions Available. 8. Temperature Alarm Function. Tips are Q500 type

Stock available: 1

Features & Benefits

High Power Output (150W): Supports large soldering joints and quick thermal recovery.Preset Process Parameter Controls (3 Modes): Easily switch between pre-defined soldering profiles for different applications.Big, Easy-to-Read LCD: Displays real-time temperature and operational settings for accuracy and convenience.Rapid Thermal Recovery: Maintains stable temperature during continuous soldering for consistent results.Quick & Easy Tip Replacement: Compatible with Quick Q500 series soldering tips for fast maintenance.Lightweight Soldering Iron: Reduces operator fatigue during long soldering sessions.ESD Safe with Monitoring Functions: Protects sensitive components from static damage.Temperature Alarm Function: Alerts the operator if temperature goes out of set range.

Specifications

Manufacturer: QuickPart Number: QUITS2300Power: 150WHandle Model: 906HHeating Element Model: HR003-ZZSoldering Tip Compatibility: Quick 503 / Q500 seriesTemperature Range: 200–420°CTip-to-Ground Resistance: <2 OTip-to-Ground Potential: <2mVPreset Process Modes: 3Display: Large LCD with real-time monitoringTip / Heating Element Type: ReplaceableESD Protection: Yes, with monitoring functionsTemperature Alarm: Yes
