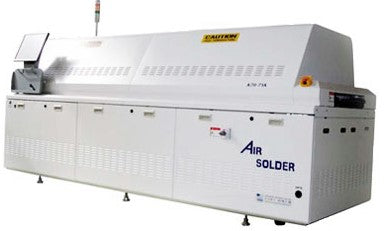

SMD Reflow Oven 8 heating Zones
oven information.jpg
tsm a70.jpg
oven information.jpg
tsm a70.jpg

SMD Reflow Oven 8 heating Zones

SKU TSMTRA-I-F82
by TSM
Sold out
$0.00 - $0.00
$0.00
$0.00
$0.00 - $0.00
$0.00
TRA I- F82 Total Soldering Machinery Their high-quality ovens satisfy every need in all electronic fields and beyond. Highly customizable ovens starting from the number of zones, to the width as well as numerous options for cooling RTPM (REAL TIME TEMPERATURE PROFILE MONITORING SYSTEM) OPTION Set the optimum profile and checks if the set profile is maintained within the error range by measuring the temperature in the oven in real time. (alarm sounds when there is an error) Temperature profile memory for each product No time loss when changing production model-sperate profile check unnecessary Reflow information saved in real time -default setting is one minute interval Remote Control Function-Allows remote control function from an office or host computer Total Heating Length 2,590mm Heating Zones 8 Cooling Zones 2 Peak Power 34KW/24KW (Standard Start / Partial Start) Power Consumption 10KW ( in Stable Operation ) Dimension Length 4,080mm Hight & width 1,420 W x 1,550 H
Features & Benefits

8 heating zones and 2 cooling zones for precise thermal controlTotal heating length of 2,590 mm ensures uniform soldering across large PCBsRTPM system (optional) monitors real-time temperature and maintains optimal profilesAlarm system alerts operators when temperatures deviate from the set profileTemperature profile memory allows instant setup for different products, eliminating production downtimeReflow information saved in real time (default 1-minute intervals) for traceability and quality controlRemote control functionality allows operation and monitoring from an office or host computerHighly customizable for width, zone configuration, and cooling optionsEfficient stable operation with low power consumption (10 kW)

Specifications

Total Heating Length 2,590mmHeating Zones 8Cooling Zones 2Peak Power 34KW/24KW (Standard Start / Partial Start)Power Consumption 10KW ( in Stable Operation )Dimension Length 4,080mmHight & width 1,420 W x 1,550 H
