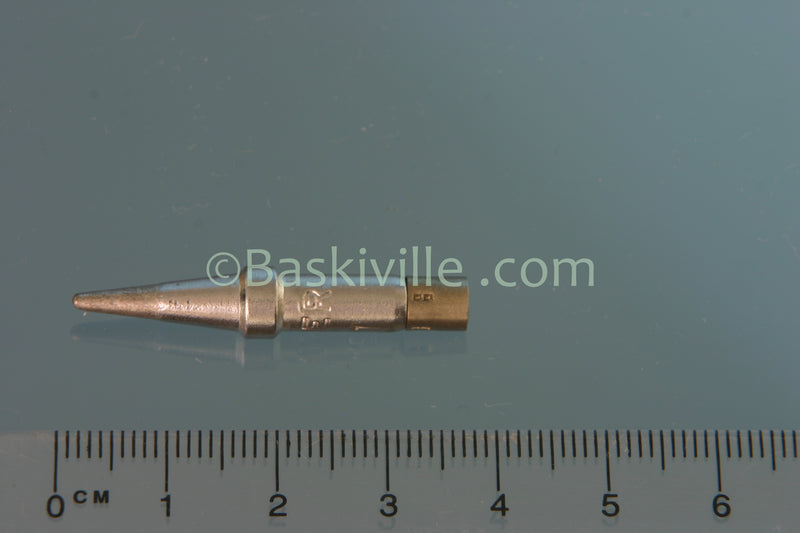

Weller Style Solder Tip Type PTAA-7 Chisel

Weller Style Solder Tip Type PTAA-7 Chisel

SKU WV21-7
by Baskiville
$0.00 - $0.00
$0.00
$6.48
$6.48 - $6.48
$6.48
Solder Tip Type PTAA-7 Chisel TIP, PT SLOPED ROUND 1.6MM Temp, op. max:370°C; Length:16mm; Temperature Code:7; Width, external:1.6mm;; To fit WTCPL, WTCPN, WTCPR, WTCP-S, WTCPT/FE stations TCP, TCPS/FE, TC201T, TC201FE irons

Stock available: 38

Features & Benefits

Sloped Round Chisel Geometry: 1.6mm tip width with a slightly rounded chisel edge for effective heat conduction and solder wetting.Elevated Temperature Rating: Operates at 370°C for reliable soldering performance and improved heat recovery.Solder-Wettability: High-quality solderable tip material ensures consistent solder joints and good wetting.Durable Build: Designed for repeated use with extended tip life under normal soldering conditions.Wide Compatibility: Works with a range of Weller TC series soldering irons and stations.

Specifications

Manufacturer: WellerPart Number: WV21-7Tip Type: PTAA-7Tip Shape / Style: Chisel (sloped round, conical flat variant)Tip Width: ~1.6mmOperating Temperature: ~370°C (nominal)Tip Length: ~16mmTemperature Code: 7Material: Solder-wettable high-performance alloyCompatibilityDesigned to fit the following Weller soldering equipment:Soldering Stations: WTCPL, WTCPN, WTCPR, WTCP-S, WTCPT/FESoldering Irons: TCP, TCPS/FE, TC201T, TC201FE
