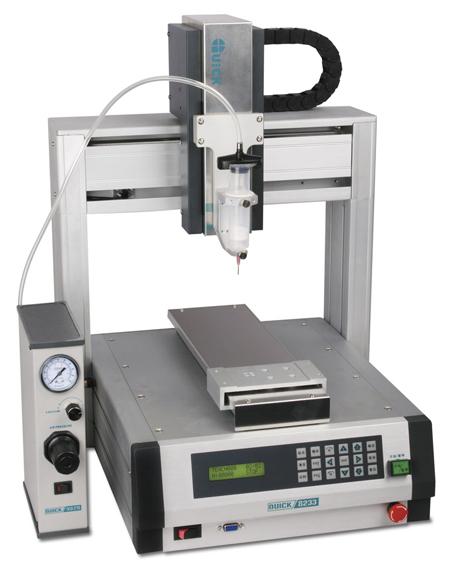

Three-axis Automatic Dispensing Robot

Linear platform, high performance price ratio, aesthetic appearance.
Teach pendant, easy to program.
High-precision stepper motor control, precise dispensing path.
Dispensing speed and time can be set separately.
Different dispensing paths like points, lines and circles are available.
Various needles, syringes, valves and controllers are available, suitable for different applications.
3 Axis.
Teach Pendant.
Dispensing Controller(QUICK982SA/SL/LL).
Dispensing Syringes/Valves.

Voltage 100-240V AC
Axis 3
Movement Range(mm)
X 400
Y 400
Z 100

Speed Range
(mm/sec)
X 0.1-600
Y 0.1-600
Z 0.1-300

Repeat Accuracy(mm)
X ±0.02
Y
Z

Resolution
(mm)
X 0.01
Y
Z
Loaded Weight(kg) Worktable 5
Head 2
Speed Control 3-Dimensional line, circular interpolation, smoothly
Gluing Compensation Glue feeding ahead or delay etc
Demo File Capacity =999, Max 60000 points
Processed File Capacity =255
Environmental Conditions Temperature (?) 0-40
Humidity (%) 20-90(No condensing)
Size W×D×H(mm) 570×570×580
Weight(kg) Around 39 kg
