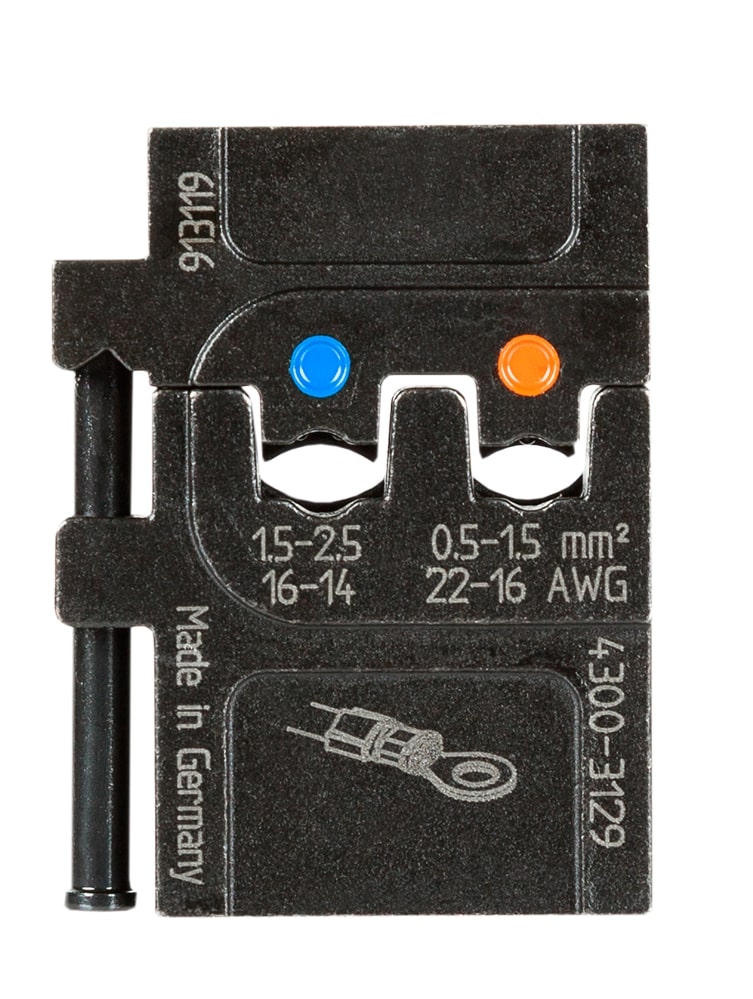

Pressmaster Die set for 22-14 AWG (0.5-2.5 mm2) red and blue insulated terminals & splices

Mobile die set/4300-3129/AAA

Mobile die set for insulated connectors, 0.5-2.5 mm²/AWG 22-14 (red, blue). This is one of the interchangeable crimp die sets for the MCT frame. A wide range of crimp dies enables the user to cover all applications in just one tool frame.

*Reliable - crimping performance is consistent and accurate with a parallel action stroke.
*Easy to use - designed to give the user full visibility of the crimping process. Handles are shaped for low effort crimping with a one or two hand grip.
*Versatile - an easy-access release function allows fast and simple exchange of crimp dies. No special tools needed.
*Weight and size of the tool are optimized to make it easy to carry. Dies are kept in pairs and delivered in a modular reusable box.
*Comfortable - the entire tool frame is covered in smooth plastic for comfortable use, also for outdoor operations in all weather conditions
*Hole in handle allows attachment of safety strap
*The part number is a reference to the die set without frame.


TECHNICAL DATA
*Length: 29 mm/1.14"
*Width: 9.5 mm/0.37"
*Height: 39 mm/1.54"
*Weight: 75 gr/0.17 lb
*Wire size: 0.5-2.5 mm2 / AWG 22-14
*Crimp dimensions mm/mm2:
*0.5 - 1.5 mm2/1.5 - 2.5 mm2
*Crimp dimensions inch/AWG:
*AWG 22 - AWG 16/AWG 16 - AWG 14
*Connector: Insulated connectors
*Description: For pre insulated red and blue connectors.
*Life span, cycles: 20,000
