Pressmaster Die set for 0.75-2.5 mm2 noninsulated terminals, lugs, and splices

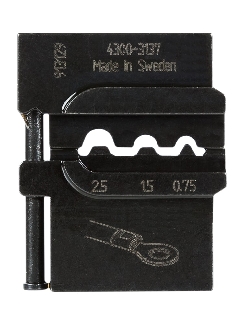

Mobile die set/4300-3137/AAA

Mobile die set for non insulated connectors 0.50-2.5 mm²/AWG 22-14. This is one of the interchangeable crimp die sets for the MCT frame. A wide range of crimp dies enables the user to cover all applications in just one tool frame.

*Reliable - crimping performance is consistent and accurate with a parallel action stroke.
*Easy to use - designed to give the user full visibility of the crimping process. Handles are shaped for low effort crimping with a one or two hand grip.
*Versatile - an easy-access release function allows fast and simple exchange of crimp dies. No special tools needed.
*Weight and size of the tool are optimized to make it easy to carry. Dies are kept in pairs and delivered in a modular reusable box.
*Comfortable - the entire tool frame is covered in smooth plastic for comfortable use, also for outdoor operations in all weather conditions
*Hole in handle allows attachment of safety strap.
*The part number is a reference to the die set without frame.


TECHNICAL DATA
Length: 31 mm/1.22"
Width: 8 mm/0.31"
Height: 39 mm/1.54"
Weight: 68 gr/0.15 lb
Wire size: 0.5-2.5 mm2 / AWG 22-14
Crimp dimensions mm/mm2:
0.50 - 0.75 mm2/1.5 mm2/2.5 mm2
Crimp dimensions inch/AWG:
AWG 22 - AWG 20/AWG 16/AWG 14
Connector: Uninsulated connectors
Description: For uninsulated copper tube and copper sheet connectors.
Life span, cycles: 20,000
