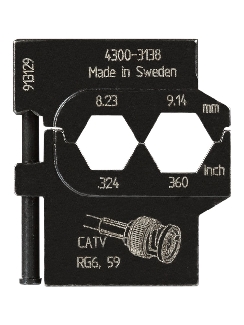

The Pressmaster 4300-3138/AAA is a precision crimp die set that is compatible with Pressmaster MCT frame. It is particularly designed for crimping CATV connectors onto RG 6.59 coaxial cables. It is one of the modules offered by Pressmaster, a modular system for interchanging dies to suit different types of connectors, which increases versatility and speed in cable assembly operations.
Main Features:
*Consistent Crimping Performance: Produces repeatable and precise crimps via a parallel action stroke mechanism.
*User-Friendly Design: The tool frame has a smooth plastic covering for comfortable handling, even outdoors.
*Easy Die Exchange: Has an easy-access release mechanism for rapid and tool-free die changes.
*Portability: Light and compact for ease of mobility, perfect for field use.
*Safety Feature: Has a hole in the handle to attach a safety strap.
*Durability: Constructed to handle up to 20,000 crimp cycles.
Specifications:
*Manufacturer: Pressmaster
*Part Number: 4300-3138/AAA
*Country of Origin: Sweden
*Length: 34 mm / 1.34"
*Width: 10 mm / 0.39"
*Height: 39 mm / 1.54"
*Weight: 79 g / 0.17 lb
*Crimp Dimensions (mm / mm²):
8.23 mm HEX
9.14 mm HEX
*Crimp Dimensions (inches / AWG):
0.324"
0.360"
*Connector Type: Coaxial connector (e.g., CATV)
*Cable Compatibility: RG 6.59, RG 6, RG 143A/U, RG 212/U, RG 222/U, RG6 Quad, RG6A/U, TWINAX
*Description: Crimping CATV connectors on RG 6.59 coaxial cables.
*Lifespan: 20,000 crimp cycles
Applications:
The 4300-3138/AAA die set is suitable for:
*Crimping CATV connectors onto RG 6.59 coaxial cables.
*Use in telecommunications, broadcasting, and networking installations.
*Fieldwork that demands robust and portable crimping tools.
