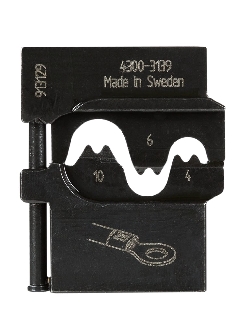

Pressmaster Die set for 4-10 mm2 noninsulated terminals, lugs, and splices

Mobile die set/4300-3139/AAA

Mobile die set for non insulated connectors 4-10 mm²/AWG 12-8. This is one of the interchangeable crimp die sets for the MCT frame. A wide range of crimp dies enables the user to cover all applications in just one tool frame.

*Reliable - crimping performance is consistent and accurate with a parallel action stroke.
*Easy to use - designed to give the user full visibility of the crimping process. Handles are shaped for low effort crimping with a one or two hand grip.
*Versatile - an easy-access release function allows fast and simple exchange of crimp dies. No special tools needed.
*Weight and size of the tool are optimized to make it easy to carry. Dies are kept in pairs and delivered in a modular reusable box.
*Comfortable - the entire tool frame is covered in smooth plastic for comfortable use, also for outdoor operations in all weather conditions
*Hole in handle allows attachment of safety strap
*The part number is a reference to the die set without frame.


TECHNICAL DATA
Length: 32 mm/1.26"
Width: 10 mm/0.39"
Height: 39 mm/1.54"
Weight: 60 gr/0.13 lb
Wire size: 4-10 mm2 / AWG 12-8
Crimp dimensions mm/mm2:
4 mm2/6 mm2/10 mm2
Crimp dimensions inch/AWG:
AWG 12/AWG 10/AWG 8
Connector: Uninsulated connectors
Description: For uninsulated copper tube and copper sheet connectors.
Life span, cycles: 20,000
