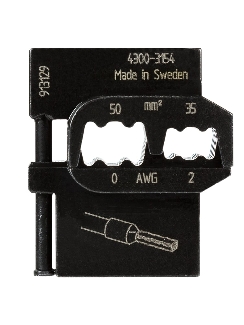

Pressmaster Die set for 2-0 AWG (35-50 mm2) insulated and noninsulated wire ferrules

Mobile die set/4300-3154/AAA

Mobile die set for endsleeves 35-50 mm²/AWG 2-0. This is one of the interchangeable crimp die sets for the MCT frame. A wide range of crimp dies enables the user to cover all applications in just one tool frame.

*Reliable - crimping performance is consistent and accurate with a parallel action stroke.
*Easy to use - designed to give the user full visibility of the crimping process. Handles are shaped for low effort crimping with a one or two hand grip.
*Versatile - an easy-access release function allows fast and simple exchange of crimp dies. No special tools needed.
*Weight and size of the tool are optimized to make it easy to carry. Dies are kept in pairs and delivered in a modular reusable box.
*Comfortable - the entire tool frame is covered in smooth plastic for comfortable use, also for outdoor operations in all weather conditions
*Hole in handle allows attachment of safety strap
*The part number is a reference to the die set without frame.


TECHNICAL DATA
Length: 34 mm/1.34"
Width: 18 mm/0.71"
Height: 39 mm/1.54"
Weight: 86 gr/0.19 lb
Wire size: 35-50 mm2 / AWG 2-0
Crimp dimensions mm/mm2:
35 mm2/50 mm2
Crimp dimensions inch/AWG:
AWG 2/AWG 0
Connector: Endsleeves
Description: For endsleve connectors, both uninsulated and insulated.
Life span, cycles: 20,000
