American Beauty Resistance Soldering

Product Overview:

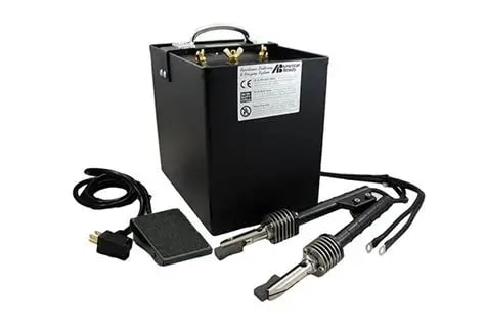

The American Beauty 10557 Resistance Brazing System is a heavy-duty brazing solution designed to deliver precision, speed, and efficiency in electrical and mechanical assembly operations. With an output of 1800 watts and a 3-inch opening between electrodes, this system ensures consistent and reliable joints in various brazing applications. Its robust design, combined with easy electrode adjustments and compatibility with multiple electrode types, makes it ideal for demanding production environments requiring strong, clean, and flux-free brazed connections.

Key Features:
*High Power Output: 1800 watts for efficient and fast brazing.
*Wide Electrode Opening: 3-inch (7.62 cm) maximum opening for versatility in workpiece sizes.
*Durable Electrodes: 0.50-inch (1.27 cm) diameter electrodes for strong and stable current transfer.
*Compact Footprint: Designed to fit production workbenches with dimensions optimised for operational efficiency.
*220-240 VAC Availability: Compatible with global voltage standards upon request.
*Compliance and Certification: RoHS compliant, CE certified, and conforms to multiple international safety standards.
*Made in the USA: Manufactured with high-quality materials and rigorous quality control for durability and performance.

Specifications:
*Manufacturer: American Beauty
*Part Number: 10557
*Connection Type: Ring Terminals
*Wattage: 1800 watts
*Opening Between Electrodes: 3 in / 7.62 cm
*Electrode Size/Diameter: 0.50 in / 1.27 cm
*Available in 220-240 VAC: Yes, available upon request
*Product Length: 12.75 in / 32.39 cm
*Product Width: 12.50 in / 31.75 cm
*Product Height: 14.00 in / 35.56 cm
*Package Weight: 39.25 lbs / 17.80 kg
*Country of Origin: US
*Harmonization Code: 8515.11.0000
*Cage Code: 02105
*RoHS Compliant: Yes
*WEEE Compliant: Yes
*CE Certified: Yes
*Certifications: BS EN IEC 60335-1:2023+A11:2023, BS EN IEC 61558-2-6 2001, UL 5085-3 2022, BS EN 60335-2-45:2002+A11:2023

Applications:
*Electrical Assembly: Creating strong, conductive joints on wires, cables, and terminals.
*Automotive Industry: Joining metal parts in automotive electrical systems and components.
*Aerospace Manufacturing: Precision brazing of electrical connectors and mechanical components.
*Metal Fabrication: Flux-free joining for clean and strong structural or conductive assemblies.
*Maintenance & Repair Operations: Reliable solution for brazing tasks in industrial maintenance.
