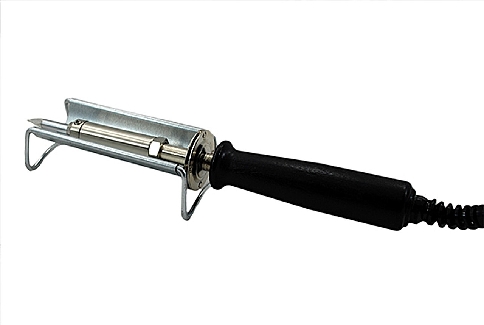

American Beauty 150watt Soldering Iron

Product Overview:
The American Beauty Model 3138-150 is a 150 watt, 3/8" heavy-duty soldering iron designed to deliver exceptional heat capacity, rapid recovery, and consistent performance in demanding industrial soldering applications. Built with a compression wound Ni-Chrome heating element, it maintains stable temperatures even under continuous heavy-duty use. Its protective casing is heat-treated and brazed from a single block of steel, ensuring maximum durability. The hardwood contoured handle provides superior thermal insulation, electrical safety, and ergonomic comfort for extended operational periods.
Manufactured in the United States under strict quality standards, this soldering iron is trusted across industries for precision soldering tasks that require high heat output and long-lasting durability.

Features & Benefits:
*Heavy-duty 150 watt soldering iron designed for industrial, production, and maintenance environments.
*Ni-Chrome compression wound heating element delivers superior heat capacity, stability, and rapid thermal recovery.
*Maximum temperature reaches up to 1000 °F / 538 °C for demanding soldering applications.
*Paragon iron-clad lead-free tips provide extended service life, outperforming ordinary tips many times over.
*Plug-style tip design ensures optimal heat transfer and ease of maintenance.
*Hardwood contoured handle offers excellent thermal and electrical insulation with ergonomic balance and comfort.
*Modular construction allows for easy replacement of consumable parts, extending tool life for generations.
*Protective steel casing heat-treated and brazed for maximum durability.
*Includes stand for safe storage between uses.
*Available in 220-240 VAC versions upon request.

Specifications:
*Manufacturer: American Beauty
*Part number: 3138-150
*Standard tip style: Diamond
*Wattage: 150 watts
*AMP draw: < 2 Amp
*Connection type: NEMA 5-15P
*Maximum temperature: 1000 °F / 538 °C
*Tip diameter: 0.375 inch
*Tip length: 4.375 inch / 11.11 cm
*Product length: 14 inch / 35.56 cm
*Product width: 2.25 inch / 5.72 cm
*Product height: 2.25 inch / 5.72 cm
*Product weight: 1.3 lbs / 0.59 kg
*Package dimensions: 16.5 x 2.75 x 2.75 inches
*Package weight: 2 lbs / 0.91 kg
*Stand included: Yes
*Available in 220-240 VAC: Yes, available upon request
*Country of origin: US
*Harmonization code: 8515.11.0000
*Cage code: 02105
*NSN number: 3439-00-542-0169
*RoHS compliant: Yes
*BS EN IEC 60335-1:2023+A11:2023 compliant: Yes
*BS EN 60335-2-45:2002+A11:2023 compliant: Yes
*WEEE compliant: Yes
*CE certified: Yes

Applications:
Users have reported the following applications:
*Soldering stained glass assemblies
*Soldering RF connectors such as PL-259
*Soldering during assembly of current monitors
*Soldering wire harnesses in MRI rooms
*Repairing sheet metal holes
*Heating inserts for placement in plastic prototypes
*Soldering RF coil ends
