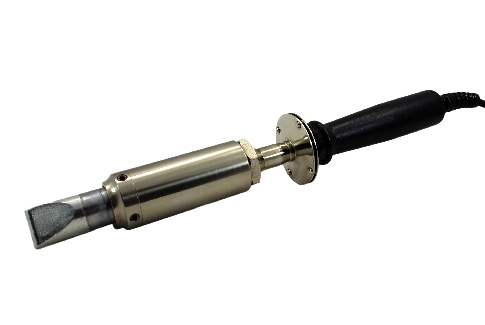

American Beauty 550w Iron 30mm Tip

Product Overview:
The American Beauty Model 3198-550 is a 550 watt, 1.125" heavy-duty soldering iron engineered for the most demanding industrial soldering applications requiring maximum heat output and continuous high performance. Built with a Ni-Chrome compression wound heating element, this soldering iron offers rapid heat-up, exceptional thermal transfer, and stable temperature maintenance even under rigorous usage. Its robust protective casing is heat-treated and brazed from a single block of steel to ensure long-lasting durability, while the hardwood contoured handle provides superior thermal and electrical insulation combined with ergonomic comfort for extended operational periods.
Manufactured in the United States to exacting standards, the Model 3198-550 is trusted across industries for precision soldering tasks involving large metal components and assemblies requiring powerful, reliable heat.

Features & Benefits:
*Heavy-duty 550 watt soldering iron delivering maximum heat output for industrial applications.
*Ni-Chrome compression wound heating element ensures exceptional heat capacity, rapid recovery, and stable temperature control.
*Achieves maximum temperatures up to 1050 °F / 566 °C for the toughest soldering tasks.
*Standard chisel tip style provides efficient heat transfer for large area soldering.
*Plug-style tip design allows for optimal performance and straightforward maintenance.
*Hardwood contoured handle offers superior thermal and electrical insulation with ergonomic comfort and balance.
*Modular construction allows easy replacement of consumable parts, extending tool life for generations.
*Protective steel casing is heat-treated and brazed for maximum strength and durability.
*Includes stand for safe and convenient storage during use.
*Available in 220-240 VAC versions upon request.

Technical Specifications:
*Manufacturer: American Beauty
*Part number: 3198-550
*Standard tip style: Chisel
*Wattage: 550 watts
*AMP draw: < 5 Amp
*Connection type: NEMA 5-15P
*Maximum temperature: 1050 °F / 566 °C
*Tip diameter: 1.125 inch
*Tip length: 5.87 inch / 14.91 cm
*Product length: 15 inch / 38.10 cm
*Product width: 3 inch / 7.62 cm
*Product height: 3 inch / 7.62 cm
*Product weight: 4.75 lbs / 2.15 kg
*Package dimensions: 17.75 x 3.25 x 3.25 inches
*Package weight: 5 lbs / 2.27 kg
*Stand included: Yes
*Available in 220-240 VAC: Yes, available upon request
*Country of origin: US
*Harmonization code: 8515.11.0000
*Cage code: 02105
*NSN number: 3439-00-294-9010
*RoHS compliant: Yes
*BS EN IEC 60335-1:2023+A11:2023 compliant: Yes
*BS EN 60335-2-45:2002+A11:2023 compliant: Yes
*WEEE compliant: Yes
*CE certified: Yes

Applications:
*Industrial soldering tasks requiring extreme heat and power.
*Heavy electrical soldering and large-scale electronic assembly.
*Metal fabrication, sheet metal repairs, and heavy-duty maintenance operations.
*Suitable for production lines, manufacturing plants, and repair workshops needing powerful and consistent soldering performance.
