Pressmaster End splices 10-25 mm2 (4300-0830)

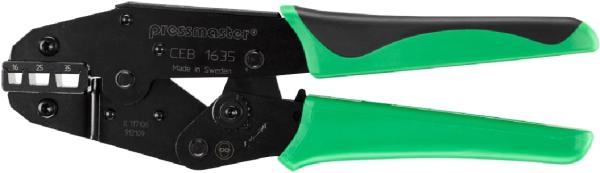

The Pressmaster End Splices CEB1635 is a heavy-duty crimping tool for endsleeve connectors as per DIN 46228 standards. It crimps wires of sizes from 16 mm² to 35 mm² (AWG 6 to AWG 2) and can be used for uninsulated and insulated endsleeve connectors. The tool has a side-feed, trapezoidal crimp mechanism that delivers accurate and consistent crimps for larger wire sizes and, thus, proves to be an excellent option for high-demand applications.

Key Features:
*High Strength Construction: Constructed from through-hardened alloy steel for added durability and longevity.
*Versatile and Ergonomic Design: Right- and left-hand versions are customizable for ultimate comfort.
*Full Cycle Crimp Mechanism: Provides reliable, consistent crimps each and every time.
*Ratchet Release Mechanism: Removes miscrimps and obstructions efficiently while keeping the tool precise.
*Precision Eccentric Adjustment: Provides uniform performance and calibration of the tool whenever necessary.
*Traceability: Every tool is labeled with a unique serial number for traceability and quality control.
*Long Life Span: Can withstand up to 50,000 crimping cycles.

Specifications:
*Manufacturer: Pressmaster
*Part Number: CEB1635 (4300-0830)
*Tool Type: Endsleeve Crimping Tool
*Wire Size: 16-35 mm² (AWG 6-AWG 2)
*Crimp Dimensions mm/mm²: 16 mm² / 25 mm² / 35 mm²
*Crimp Dimensions inch/AWG: AWG 6 / AWG 3 / AWG 2
*Connector Type: Endsleeves (insulated and uninsulated)
*Length: 230 mm (9.06")
*Width: 21 mm (0.83")
*Height: 70 mm (2.76")
*Weight: 540 gr (1.19 lb)
*Life Span (Cycles): 50,000
*Release Mechanism: Ratchet release for clearing miscrimps
*Adjustments: Precision eccentric adjustment for consistent crimp performance
*Material: Through-hardened alloy steel
*Traceability: Unique serial number assigned to each tool

Applications:
*Electrical: Suitable for crimping wire endsleeves in electrical systems, particularly in higher power or industrial applications.
*Automotive: Suitable for automotive wiring systems with large-gauge wire crimps.
*Industrial: Ideal for industrial use with heavy-duty crimping of large wire sizes.
*Maintenance and DIY: Ideal for professionals and DIY users handling high-voltage or large-scale electrical projects.
