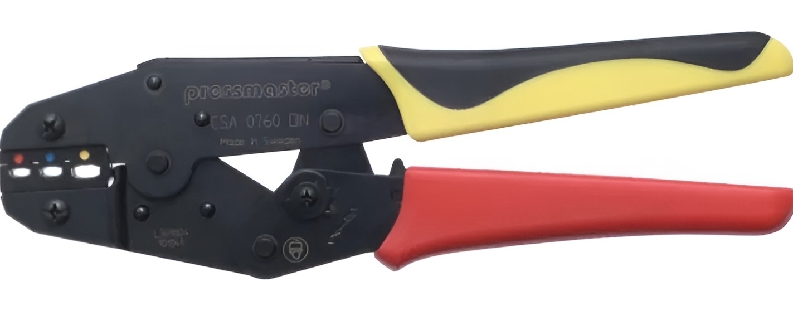

Pressmaster Pre-insulated 0.75-6.0 mm2 - DIN version (4300-0411)

The Pressmaster CSA0760DIN is a precise ratchet crimp tool developed for repeated, high-performance terminations in red, blue, and yellow-DIN pre-insulated terminals. Specifically engineered for crimping 0.75 mm² to 6.0 mm² (22-10 AWG) wire, it suits industrial, electrical, and maintenance uses in cases where pre-insulated DIN-standard terminals are applied.
Designed to last and deliver ergonomic performance, it has a factory-set eccentric cam adjustment to provide calibration and crimping precision over its life. Its ratchet mechanism guarantees a full crimping cycle, and the ergonomic grips provide two-handed operation for high-pressure, low-effort crimping.

Key Features:
*DIN-Compatible Crimping: Red, blue, and yellow pre-insulated DIN-standard terminals specifically designed.
*Wire Range: Suitable wire sizes range from 0.75-6.0 mm² / 22-10 AWG.
*Precision Crimping: Dies leave mark on terminal for easy inspection and quality control.
*Durable Construction: Withstands at least 50,000 crimp cycles.
*Ratchet Mechanism: Provides complete crimp cycle for uniform and secure crimps.
*Safety Release: Permits instant release in event of miscrimps or jamming.
*Eccentric Cam Adjustment: Factory-adjusted to ensure optimal crimp performance and consistency.
*Ergonomic Design: Two-hand grip provides powerful and controlled operation with minimum hand strain.

Specifications:
*Manufacturer: Pressmaster
*Part Number: CSA0760DIN (4300-0411)
*Length: 225 mm / 8.86"
*Height: 70 mm / 2.76"
*Weight: 540 g / 1.19 lbs
*Connector Type: Pre-insulated terminals (DIN standard)
*Wire Size Range:
*Metric: 0.75-6.0 mm²
*AWG: 22-10 AWG
*Terminal Colors Supported: Red, Blue, Yellow (DIN)
*Crimping Mechanism: Ratcheting with full-cycle lock and safety release
*Cycle Life: Minimum 50,000 operations

Applications:
*Electrical Installations: For dependable crimping of DIN pre-insulated terminals in residential and industrial applications.
*Panel Building: Provides reliable terminations for control and power wiring in panels.
*Maintenance & Repair: Best for electricians and maintenance staff working with insulated terminals.
*Automotive Wiring: Ideal for electrical connections in automobile wiring harnesses and systems.
*Industrial Equipment: Provides secure connections in factory automation and machine wiring.
