Corex CX 3xx
Corex CX 3xx is a stripping tool for coaxial cable, Ø 2.5-7.6 mm/0.1-0.3", 3 level stripping.
*Flexible. Strips more coaxial cable sizes (Ø 2.5-7.6 mm/0.1-0.3") than any other comparable stripper.
*Accurate. Strips most cables with machine-like accuracy. Standard cassettes produce the strip lengths required for the majority of connectors. Custom cassettes can be made to order.
*Unique setting gauge gives simple adjustment of blade height for most common cable types.
*Fast. Simply insert the cables, close and rotate to strip.
*Long-lasting. Steel blades tested for more than 1,000 strips per cassette.
*Economical. High productivity, long life and great versatility make Corex a best buy for anyone who needs to strip more than one cable size

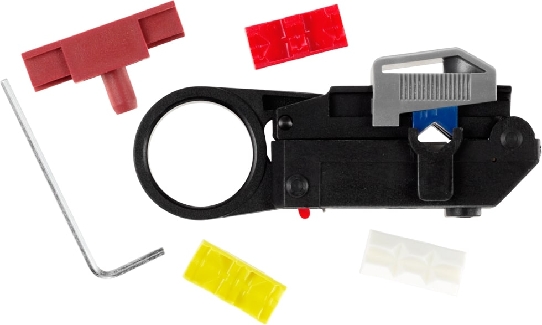

*Each tool is delivered with one knife cassette, four v-blocks, gauge and allen-key
*All five cassettes are available as separate items.
Cassette Colour Blade Spacing(B) mm/' Blade Spacing(C) mm/'
CX 309 white 2,5/0.10 6,8/0.266
CX 301 brown 2,7/0.109 8,3/0.328
CX 300 black 5,5/0.220 5,5/0.220
CX 305 green 6,0/0.235 6,0/0.235
CX 399 dark brown 3,5/0.138 7,5/0.295
TECHNICAL DATA
Length: 90 mm/3.54"
Width: 25.5 mm/1"
Height: 37.5 mm/1.48"
Weight: 40 gr/0.09 lb
Wire size: 2.5-7.6 mm / 0.1''-0.3''
Stripping dimensions mm/mm2:
adjustable/setting
Stripping dimensions inch/AWG:
adjustable/setting
Cable: Coaxial cable
Description: Coaxial cable stripper Ø 2.5-7.6 mm/0.1-0.3
Life span, cycles: 1,000 strips per cassette
