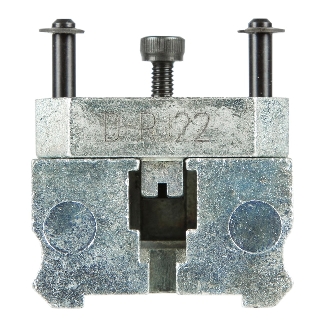

Pressmaster Modular plug die - RJ22 (4300-1012)

PMP4080/D-RJ 22

PMP-4080 Die set for modular plug connectors 4/4, 4/2. This is one of the interchangeable crimp die sets for the PMP-4080 frame. The user can cover several modular plug connectors in just one tool frame.

*High strength, through hardened alloy steel construction
*Full cycle crimp mechanism to ensure consistent, reliable crimp
*Ratchet release mechanism to clear miscrimps and obstructions
*Precision eccentric adjustment for consistent performance and ability to calibrate
*Each tool has a unique serial number for traceability
*The part number is a reference to the die set without frame.

TECHNICAL DATA
Length: 22 mm/0.87"
Width: 30 mm/1.18"
Height: 33 mm/1.3"
Weight: 75 gr/0.17 lb
Crimp dimensions mm/mm2:
D-RJ 22
Crimp dimensions inch/AWG:
D-RJ 22
Connector: Modular plug
Description: 4/4, 4/2
Life span, cycles: 50,000
