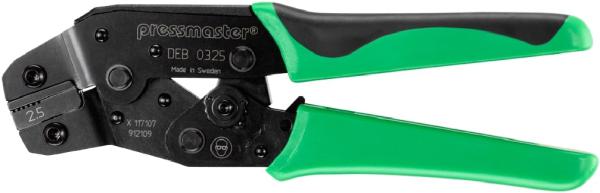

PRESSMASTER CRIMP TOOL (4300-0480)

The Pressmaster DEB 0325 is a precision crimping tool used for crimping end sleeves (ferrules) in compliance with DIN 46228 standards. It supports wire sizes of 0.25 mm² to 2.5 mm² (AWG 24 to 14) and has a front-feed configuration with a trapezoidal crimp profile. Made from through-hardened alloy steel, the DEB 0325 offers durability as well as reproducible performance, and it is best suited for professional electrical and industrial uses.

Key Features:
*High-Strength Construction: Constructed of through-hardened alloy steel for added durability.
*Ergonomic Design: Compatible with both right-handed and left-handed operators.
*Full-Cycle Crimp Mechanism: Provides a complete crimp cycle for consistent, dependable crimps.
*Ratchet Release Mechanism: Provides for clearing miscrimps and blockages.
*Precision Eccentric Adjustment: Offers consistent performance and calibration ability.
*Traceability: Every tool has a distinctive serial number for quality control identification.

Specifications:
*Manufacturer: Pressmaster
*Part Number: DEB 0325 (4300-0480)
*Country of Origin: Sweden
*Length: 198 mm / 7.8""
*Width: 18 mm / 0.71"
*Height: 59 mm / 2.32"
*Weight: 350 g / 0.77 lb
*Wire Size Range: 0.25-2.5 mm² / AWG 24-14
*Crimp Dimensions (mm²): 0.25 mm²; 0.5-1.5 mm²; 2.5 mm²
*Crimp Dimensions (AWG): AWG 24; AWG 22-16; AWG 14
*Connector Type: End sleeves (ferrules), both insulated and uninsulated
*Crimp Profile: Trapezoidal (Trapez-Crimp)
*Lifespan: 50,000 crimp cycles

Applications:
The DEB 0325 crimp tool is particularly suitable for:
*Crimping end sleeves (ferrules) onto conductors between 0.25 and 2.5 mm² (AWG 24-14)
*Assembling and servicing electrical panels
*Factoring industrial wiring harnesses
*Field repair and service work calling for consistent crimping of end sleeves
