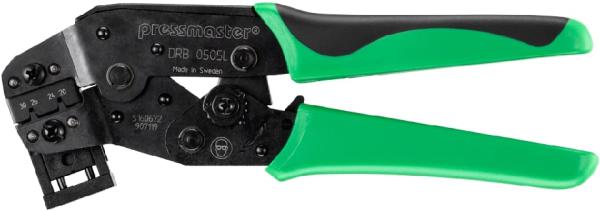

The Pressmaster DRB 0505 L is a production-level crimping tool designed exclusively for open barrel (uninsulated) D-Sub connectors. With the capability to accommodate wire sizes from 0.05 to 0.50 mm² (AWG 30-20), this tool produces reliable, high-precision crimps with a B-crimp profile. Its durability and ergonomic design make it an appropriate choice for production environments as well as field use in the electrical and electronics industries.
Key Features:
*Durable Alloy Steel Construction: Provides long-term performance and wear resistance.
*Full-Cycle Mechanism: Provides full crimping for quality and reliability.
*Ergonomic Handle Design: Easy grip compatible with both right- and left-handed individuals.
*Ratchet Release Function: Easily removes miscrimps and tool jams.
*Eccentric Adjustment: Provides means for tool recalibration and repeatable performance.
*Built-in Locator: Positions the connector accurately during crimping.
*Unique Serial Number: Each tool serially numbered for tracking and quality assurance.
Specifications:
*Manufacturer: Pressmaster
*Part Number: DRB 0505 L
*Country of Origin: Sweden
*Length: 198 mm / 7.8"
*Width: 18 mm / 0.71"
*Height: 59 mm / 2.32"
*Weight: 357 g / 0.79 lb
*Wire Size Range: 0.05-0.50 mm² / AWG 30-20
*Crimp Dimensions (mm²): 0.05-0.15 mm² and 0.25-0.50 mm²
*Crimp Dimensions (AWG): AWG 30-26 and AWG 24-20
*Connector Type: Open barrel (uninsulated) D-Sub connectors
*Crimp Profile: B-Crimp
*Lifespan: 50,000 crimp cycles
Applications:
The DRB 0505 L crimp tool is suited for:
*Crimping open barrel D-Sub connectors in electronics and electrical assembly.
*Manufacturing of communication and data transmission cables.
*Assembly of wiring harness in industrial equipment and control panels.
*Repair and maintenance of devices utilizing D-Sub connections.
