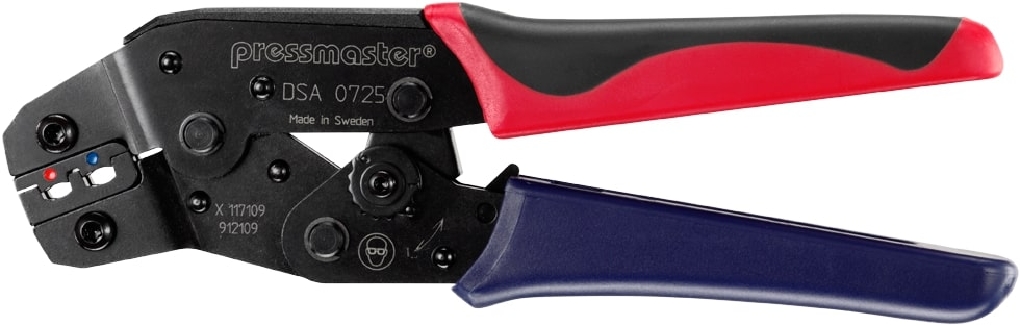

PRESSMASTER INSULATED CRIMP TOOL (4300-0309)

The Pressmaster DSA0725 is a heavy-duty crimping tool meant for insulated terminals between 0.75 to 2.5 mm² (AWG 22-14). Sweden is where the tool is produced, and the oval-crimp profile guarantees dependable, consistent crimps. With an ergonomic build and precision design, it accommodates both left- and right-handed users in various electrical and industrial applications.

Key Features:
*Ergonomic Design: Lightweight and compact for comfortable usage in limited spaces or repetitive motions.
*Durable Construction: Fabricated with tough, through-hardened alloy steel for extended periods of service life.
*Full-Cycle Crimp Mechanism: Ensures flawless crimping with consistent and secure outcomes.
*Ratchet Release Feature: Makes safe and straightforward clearing of miscrimps and jams possible.
*Precision Eccentric Adjustment: Produces high quality of crimps by providing delicate calibration.
*Ambidextrous Use: Designed to be configuable for the left-handed user as well as the right-handed user.
*Traceability: Serial number specifically engraved on every tool for traceability and quality control.
*High Durability: Designed to last up to 50,000 cycles.

Specifications:
*Manufacturer: Pressmaster
*Part Number: DSA0725 (4300-0309)
*Crimping Range: 0.75 - 2.5 mm² / AWG 22 - AWG 14
*Crimp Profile: Oval
*Crimp Dimensions (mm/mm²):
0.75 - 1.5 mm² (red)
1.5 - 2.5 mm² (blue)
*Crimp Dimensions (inch/AWG):
AWG 22 - AWG 16 (red)
AWG 16 - AWG 14 (blue)
*Connector Type: Insulated connectors
*Description: For pre-insulated red and blue connectors
*Life Span: 50,000 cycles
*Length: 198 mm / 7.8"
*Width: 18 mm / 0.71"
*Height: 59 mm / 2.32"
*Weight: 354 g / 0.78 lb

Applications:
*Electrical Installations: Ideal for use in wiring work in domestic, commercial, and industrial applications.
*Automotive Wiring: Suitable for making robust, dependable electrical connections in vehicles.
*Control Panels and Distribution Boards: Provides accuracy to critical electrical hardware.
*Maintenance and Field Repair: Trustworthy device for electricians and technicians in the field.
*Assembly Lines and Manufacturing: Ideal for repetitive operations involving uniform crimping quality.
