Fisnar Autotube Adaptor C

The TD101 tube-gun dispenser is engineered to specifically address the waste and discomfort that result from dispensing materials in collapsible tubes. A comfortable, balanced design that safely protects the tube from damage and the operator from contamination.

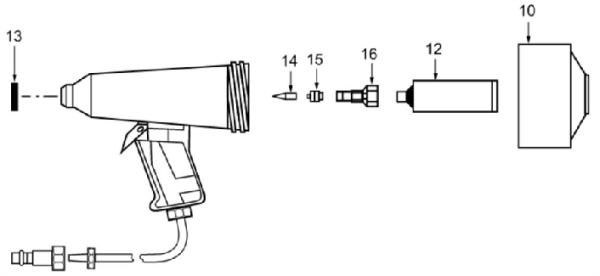

Part 880001-C is a replacement autotube adapter only for use with TD101 gun. Shows as part 16 on the diagram.


Technical Specs
*Use with TD101 gun only


Replacement Parts (supplied with each new gun)

Item Part

1 560700 nozzle
2 560699 nozzle nut
3 560698 O-ring
4 560697 lock ring
5 560696 seal retaining ring
6 560695 seal
7 560705 5' hose
8 560704 hose fitting
9 560703 connector
10 560702 cap
11 560701 hose barb
12 Tube (not supplied)
13 560707 adapter nut
14 560706 tip set
15 560545 luer lock adapter
16 880001-KIT includes:-
880001-A adapter
880001-B adapter
880001-C adapter
