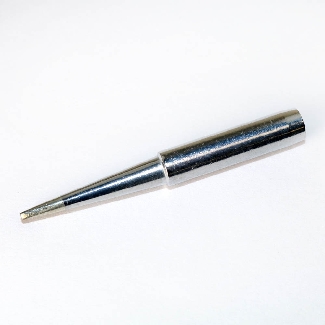

DDD Hakko 1.2mm Long Screwdriver Tip

The Hakko 900M-T-1.2LD is a precision flat-blade (chisel) tip featuring a narrow 0.7 mm edge on an angled 1.2 mm blade, and a total length of approximately 25 mm. Designed for both line and face soldering techniques, it offers excellent control for fine soldering, drag soldering, pre-tinning, and general component work. Compatible with Hakko 900M, 907, and 913 soldering irons, this tip is ideal for technicians who need flexibility in tip orientation and performance in tight layouts.

Features:
*Dual-orientation chisel design: capable of soldering using either the line or face of the tip.
*Narrow 0.7 mm edge for precise line soldering and a wider 1.2 mm face for broader application.
*Provides good thermal transfer and wetting performance.

Specifications:
*Manufacturer: Hakko
*Part Number: 900M-T-1.2LD
*SKU: HK900M-T-1.2LD
*Tip Shape: Chisel (Shape D, long design)
*Edge Width: 0.7 mm
*Blade Width (face): 1.2 mm
*Tip Length: Approximately 25 mm
*Compatible Models: Hakko 900M, 907, 913, and other compatible 900 series irons and stations
*Tip Coating: Tin-plated for corrosion resistance and solder adhesion
*Country of Origin: Japan

Applications:
*Drag soldering by sliding along component leads using the line edge.
*Face soldering for larger pad surfaces or wire pre-tinning.
*Ideal for component lead soldering, wire tinning, or tasks requiring flexibility of orientation.
*Suited for fine-pitch PCB rework, general electronics assembly, and maintenance applications.
