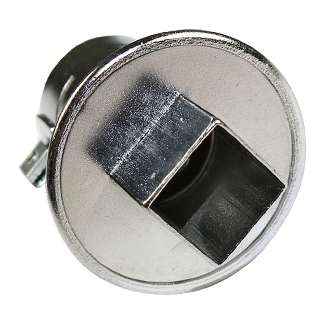

Hakko Hot Air 13mm x 13mm BGA Nozzle

The Hakko A1472 is a BGA nozzle measuring 13 mm × 13 mm with a 12.4 mm height, designed for use with Hakko hot-air rework stations such as FR-811, FR-810B, FR-801, FR-802, FR-803B, as well as the 850 and 852 series. It supports the vacuum pickup function and is optimized for precision BGA rework involving 13 mm × 13 mm ball grid arrays. Manufactured by Hakko, this nozzle is part of their conventional (non-quick-change) nozzle lineup.

Features:
*Designed specifically for BGA components sized 13 mm × 13 mm.
*Supports vacuum pickup operation on compatible Hakko rework systems.
*Provides precise, uniform airflow targeting BGA arrays.
*Improves rework efficiency and reduces thermal stress during component removal.
*Constructed with durable materials suited for repeated high-temperature use.
*Compatible with lead-free soldering processes.
*RoHS compliant and ESD-safe by design.

Specifications
*Manufacturer: Hakko
*Part number: HKA1472
*Type: BGA hot air nozzle
*Working size: 13 mm × 13 mm × 12.4 mm height
*Compatibility: FR-811, FR-810B (with adapter B5058 if required), FR-801, FR-802, FR-803B, 850 series, 852 series
*Vacuum function: Supported
*Series: Conventional type nozzle (not quick-change)
*Material/Safety: RoHS compliant, ESD-safe, suitable for lead-free soldering

Uses:
*Ideal for precise rework and reflow work on BGA (ball grid array) packages measuring 13 mm × 13 mm.
*Used for component removal or replacement in PCB repair and assembly involving medium-sized BGAs.
*Supports vacuum-assisted picking for clean and efficient component removal.
*Suitable for industrial and laboratory environments requiring tight thermal control.
*Works with various Hakko hot-air systems in manual and programmable modes.
