Hakko Thermal Tweezer Par Movement

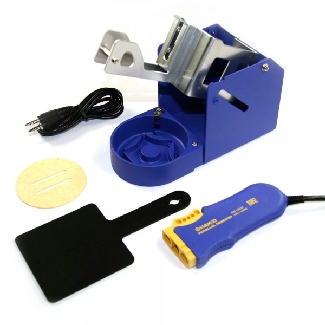

The Hakko FM-2022 SMD Hot Tweezer Kit is designed for precise removal and replacement of SMD components and flat packages up to 25 mm wide. It features a parallel-action mechanism where one tip remains stationary for accurate alignment and even heat distribution. The composite design integrates a built-in heater for quick tip changes and efficient heat transfer. Compatible with Hakko FM-202, FM-203, and FM-206 soldering stations, this kit includes a stand but does not include tips.

Features & Benefits:
*Parallel-action tips provide uniform heating and secure grip on SMD components.
*Composite design with built-in heater allows quick and easy tip replacement.
*Ensures efficient heat transfer with minimal thermal impact on nearby components.
*ESD-safe design suitable for sensitive electronics and circuit boards.
*Compatible with FM-202, FM-203, and FM-206 soldering stations.
*Includes stand for safe and organized workstation setup.

Specifications:
*Manufacturer: Hakko
*Part Number: FM2022-04
*SKU: HKFM-2022
*Power Consumption: 140 W (24 V)
*Temperature Range: 200°C - 400°C
*Temperature Accuracy: ±15°C
*Temperature Stability: ±5°C at idle
*Tip to Ground Resistance: <2 ohms
*Tip to Ground Potential: <2 mV
*Cord Length: 1.2 m
*Length (without cord & tip): 110 mm
*Weight: 53 g (handpiece only)
*Compatible Stations: FM-202, FM-203, FM-206
*Country of Origin: Japan

Applications:
*Electronics: For rework and removal of SMD chips and flat packages up to 25 mm.
*Electrical: Suitable for repairing and refurbishing control boards and assemblies.
*Automotive: Ideal for ECU and sensor module rework where precise heating is required.
*Repair & Maintenance: Excellent for bench-top rework and PCB service stations.
*Training & Production: Ideal for developing technician soldering and rework skills.
