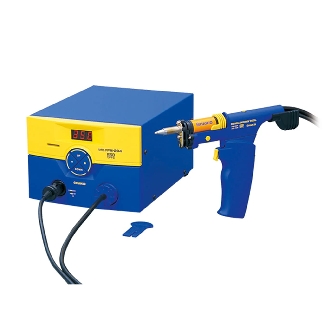

Hakko FM-204 ESD Desoldering Station

The Hakko FM-204 is a compact, high-performance ESD-safe desoldering station designed for efficient component removal and solder rework. Equipped with a built-in vacuum pump and temperature control, it ensures stable and precise desoldering on through-hole and surface mount PCBs. The station is compatible with multiple handpieces, offering flexibility for both soldering and desoldering operations in electronics, electrical, and automotive electronic repair.

Features & Benefits:
*High thermal recovery: Integrated nozzle with built-in heating element and sensor provides faster heat response and stable temperature control.
*Versatile operation: Supports multiple handpieces - FM-2024 desoldering gun, FM-2027 soldering iron, and FM-2026 N2 soldering iron.
*Selectable grip: Can be used in both gun-type and straight-type configurations for operator comfort.
*Easy maintenance:
-Disposable paper filter pipe allows quick, clean replacement and easy separation of solder residue.
-Safe and simple nozzle replacement using the included nozzle remover, even before cooling.
*Power-saving functions:
-Sleep mode: Automatically reduces tip temperature by about 200 °C when placed on the holder to minimize oxidation.
-Auto power shut-off: Deactivates the station when the holder is connected, enhancing safety and tip life.
*User alerts: Adjustable buzzer and temperature alert settings for error and temperature notifications.

Specifications:
*Manufacturer: Hakko
*Model / Part Number: FM-204 (HKFM-204)
*Power Consumption: 120 W
*Temperature Range:
-FM-2024: 350 °C - 450 °C
-FM-2026 / FM-2027: 200 °C - 450 °C
*Temperature Stability: ±5 °C at idle
*Output Voltage: AC 24 V
*Vacuum Generator: Double-cylinder pump
*Vacuum Pressure: Max. 80 kPa (600 mmHg)
*Suction Flow: 15 L/min
*Station Dimensions: 160 (W) × 120 (H) × 225 (D) mm
*Station Weight: 3.7 kg
*Desoldering Tool:
*Power Consumption: 70 W (24 V)
*Nozzle-to-Ground Resistance: < 2 O
*Nozzle-to-Ground Potential: < 2 mV
*Heating Element: Composite heater
*Cord Length: 1.2 m
*Total Length: 180 mm (with F1.0 mm nozzle)
*Weight: 65 g (with F1.0 mm nozzle)
*Country of Origin: Japan

Inclusions:
*Main Unit
*Soldering Iron FM-2024 with Handle B2872
*Iron Holder FH200-05
*Cleaning Drill B2873
*Ceramic Paper Filter (10 pcs) A1613
*Filter Pipe Assembly A1612
*Control Card B2972
*Nozzle Remover B2876
*Tip Tray
*Connecting Cable B3253
*Power Cord
*Instruction Manual
*Tips not included

Applications:
*Electronics and PCB desoldering and rework.
*Electrical assembly and maintenance.
*Automotive electronics servicing and repair.
*Industrial production, prototyping, and circuit board restoration.
