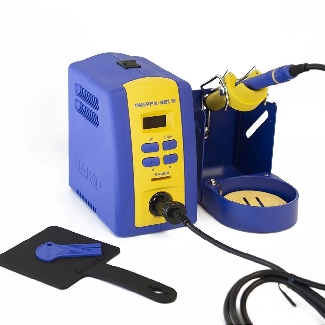

Hakko FX-951 Digital Solder Station

Hakko FX-951/FX951 Digital Lead Free Soldering Station

Digital soldering station with space saving vertical design housing. Ideally suited to lead free soldering processes. Composite design tip ensures temperature accuracy and excellent thermal recovery. Features selectable sleep function to prolong tip life and an energy saving automatic shut off function.

Features:
Superior heat transfer and thermal recovery
Lockout key card to prevent unauthorized or accidental temp settings
Soldering iron (FM-2028) uses quick-change composite tips
Low temperature alarm
Auto shutoff after 30 minutes of non-use
Sleep mode functionality when used with the FH200-02 iron stand

Included:
FX-951 Soldering Station
FM2028 Iron
Power cord
B2972 Control card
Heat resistant pad
FH200-02 Iron Holder
Connecting cable
Instruction manual
Note Tip not included
The Hakko FX-951 is a compact yet high performance soldering station. Even when soldering with lead-free solders the high performance allows lower operating temperatures. The station features a programmable sleep mode of 0-29 minutes or auto-power shut off at 30 minutes. The sleep mode reduces the tip temperature to approximately 200ºC (400ºF) after the programmed time (0-29 minutes). The lower tip temperature will reduce oxidation of the tip and improve the tip performance. When in sleep mode the tip will quickly return to temperature after the iron is removed from the holder.

The station uses the T12 series composite tip. The composite tip is a soldering tip in which a heating element and sensor are integrated. Despite its highly compact design, the tip offers superior thermal response and greatly improved thermal recovery. T12 series tips are available in a wide variety of tip shapes and can also be used with the Hakko FM-203 and FM-202 soldering stations. Any tip can be operated at temperatures 200 - 450ºC (400 - 840ºF).

The station includes a card lock system to lock the preset soldering temperature. With the card removed operators can not adjust the working temperature.
