JBC High Power Hot Air Station without Acc

Details

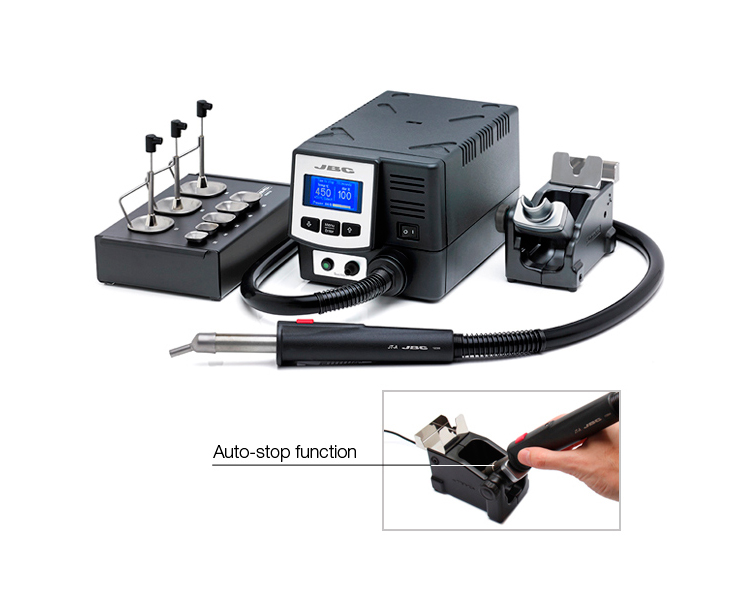

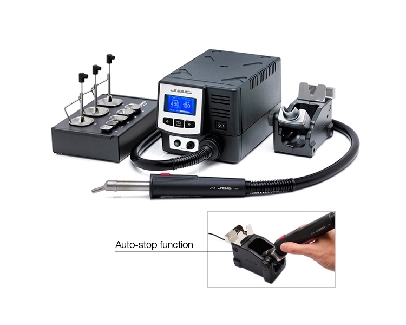

This is a high powered hot air station to repair all types of SMD quickly and safely, even the biggest QFPs and PLCCs.

The unit features two work modes -manual or program- to manage efficiently the temperature and the hot air flow.

Using the menu you can personalize over 20 parameters to help manage the soldering process.

It works with the JT-TA heater and features a USB-B connector for software updates.

It comes with the JT-SD Stand that guarantees the Auto-stop function when the tool is at rest.

Basic Specifications

Weight: 4.104 kg (9.04 lb)
Size: 148 x 184 x 140 mm
Voltage(AC): 230V 50/60Hz
Input Fuse: T 4A
Nominal Power: 700W
Rated Current: 3A
Temperature selection: 150-450 ºC (300-840 ºF)
Cool Mode: Room Temperature
Ambient operating temp.: 10-40ºC (50-104 ºF)
Air Flow range: 10-50 SLPM
Vacuum: 30% / 228 mmHg / 9 inHg
USB-B connector station-PC
P-005 Pedal connector
ESD Safe
Package weight: 5.171 kg (11.39 lb)
Package dimensions: 474 x 368 x 195 mm
Product Composition

Control Unit: Hot Air
Stands: JT-SD
Tools: JT-T2A 230V - Heater hose set
Accessories: JN2020 Nozzle for JT heater, JN2015 Nozzle for JT heater, JN2012 Nozzle for JT heater
