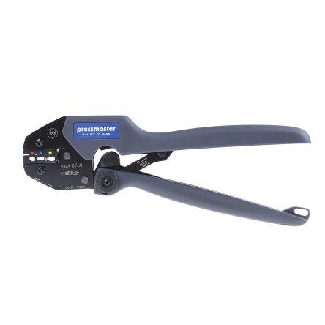

PRESSMASTER INSUL. ASYMMETRIC CRIMP TOOL (4300-3686)

The Pressmaster KAA0760 is a high-precision ratchet-action hand crimping tool specifically created for uniform, reliable crimping of red, blue, and yellow pre-insulated terminals. Appropriate for wire size from 0.5 mm² to 6 mm² (AWG 20 to 10), the tool comprises asymmetric dies providing maximum compression both on the insulation and conductor to produce firm, long-lasting connections. Its comfort grip and hard-wearing nature make it specifically suitable for experts in electrical, automotive, and industrial applications.

Key Features:
*Asymmetric Crimping Dies: Deliver best-in-class compression for both insulation and conductor to ensure superior quality crimps.
*Ergonomic Handles: For two-handed grip, minimizing hand fatigue for prolonged use.
*Full-Cycle Ratchet Mechanism: Provides assured completion of crimping cycle for consistent output.
*Ratchet Release Function: Facilitates instant release in the event of miscrimps or obstruction.
*Precision Eccentric Adjustment: Offers fine adjustment for consistent performance with easy calibration.
*Durable Construction: Constructed with high-strength, through-hardened alloy steel for ruggedness.
*Traceability: Individually serialized for quality control and traceability.

Specifications:
*Manufacturer: Pressmaster
*Part Number: KAA0760
*Crimping Capacity: 0.5-6 mm² (AWG 20-10)
*Crimping Die Sizes:
Red terminals: 0.5-1.5 mm² (AWG 20-16)
Blue terminals: 1.5-2.5 mm² (AWG 16-14)
Yellow terminals: 4-6 mm² (AWG 12-10)
*Tool Dimensions:
Length: 256 mm
Width: 22 mm
Height: 80 mm
Weight: 559 g
*Durability: Tested to 50,000 crimp cycles
*Connector Type: Pre-insulated red, blue, and yellow terminals

Applications:
*Electrical installations with secure insulated terminations
*Maintenance and repair of automotive electrical systems
*Industrial equipment assembly and wiring
*Renewable energy installations like solar panel systems
