PRESSMASTER END SPLICE 0.5-6MM WIRE (4300-3696)

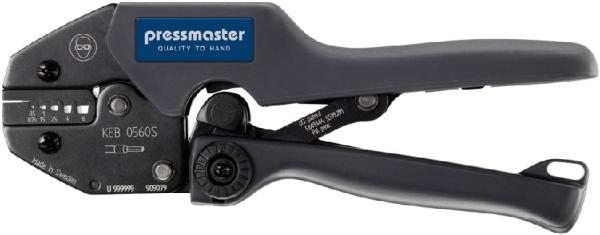

The Pressmaster KEB 0560S is a commercial-quality crimping tool with precise and trustworthy crimping of wire end sleeves (ferrules) according to DIN 46228 standards. The tool accepts wire sizes from 0.25 to 6.0 mm² (AWG 24-10) and is adaptable for both uninsulated and insulated ferrules. Ergonomically and durably engineered, this tool is particularly suitable for tasks that demand high-quality and repeatable electrical connections.

Key Features:
*Crimping Capacity: Supports wire sizes from 0.25 to 6.0 mm² (AWG 24-10) for broad use across many applications.
*Crimp Profile: Applies a trapezoidal crimp profile, providing robust and dependable connections.
*Side-Feed Design: Allowing simple insertion of wire end sleeves for efficient performance.
*Ergonomic Handles: With short or long handles to fit the user's choice and prevent hand fatigue.
*Low Hand Force Requirement: Has a special mechanism that reduces the hand force required significantly over other tools.
*Heavy-Duty Construction: Constructed of high-strength, through-hardened alloy steel for long-term durability.
*Safety Features: Fitted with a ratchet release mechanism to remove miscrimps and obstructions, and a hole in the handle permits the fitting of a safety strap.
*Precision Adjustment: Fitted with an eccentric adjustment for reliable performance and calibration.
*Non-Slip Pad: The tool is kept in position on a work surface by a pad on the tool.
*Traceability: Each tool is assigned an individual serial number for tracking and quality control purposes.

Specification:
*Manufacturer: Pressmaster
*Part Number: KEB0560S (4300-3696)
*Crimping Range: 0.25-6.0 mm² (AWG 24-10)
*Crimp Dimensions:
0.25-0.75 mm²
1-1.5 mm²
2.5 mm²
4 mm²
6 mm²
*Dimensions:
Length: 204 mm
Width: 22 mm
Height: 76 mm
Weight: 505 grams
*Crimp Profile: Trapezoidal
*Feed Type: Side-fed
*Handle Options: Short or long handles to suit
*Cycle Life: Suitable for 50,000 cycles

Applications:
*Electrical Installations: Suitable for making secure connections in household, commercial, and industrial electrical networks.
*Control Panel Assembly: For making trustworthy crimps on control panels and switchboards.
*Industrial Wiring: Suitable for wiring in heavy applications needing strong and reliable connections.
*Maintenance and Repair: Convenient to use for repair activities where a repeatable and quality crimp is required.
*Field Service: Handheld model allows for ease of use for on-site electrical services.
