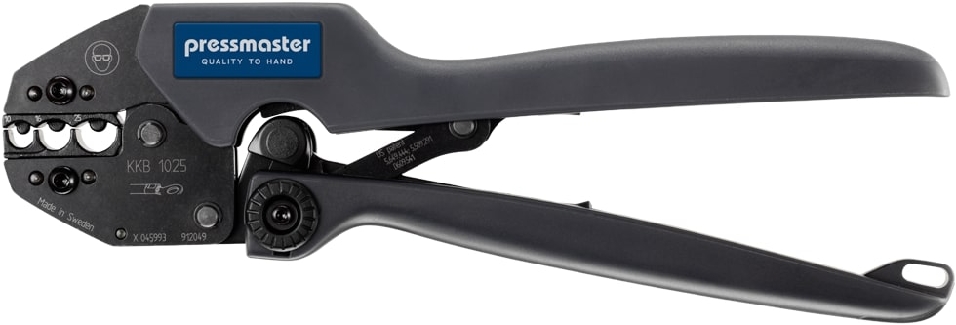

PRESSMASTER CRIMP TOOL (4300-3703)

The Pressmaster KKB 1025 is a precision crimping tool for non-insulated connectors, supporting wire sizes between 10 mm² and 25 mm² (AWG 8 to 4). It has an indent-crimp profile and meets DIN 46234 standards. The KKB 1025 is made of through-hardened alloy steel for strength and reliability, making it suitable for professional electrical and industrial use.

Key Features:
*High-Strength Construction: Constructed from through-hardened alloy steel for added durability.
*Ergonomic Design: Ergonomic design for use by both right- and left-handed individuals.
*Full-Cycle Crimp Mechanism: Complete crimp cycle for consistent, repeatable crimps.
*Ratchet Release Mechanism: Provides for clearing of miscrimps and blockages.
*Precision Eccentric Adjustment: Consistent performance and calibration feature.
*Non-Slip Pad: Prevents slippage when prying on a work surface.
*Traceability: Unique serial number on every tool for quality control traceability.
*Safety Strap Attachment: Handle has hole for fitting a safety strap.

Specifications:
*Manufacturer: Pressmaster
*Part Number: KKB 1025 (4300-3703)
*Country of Origin: Sweden
*Length: 256 mm / 10.08"
*Width: 22 mm / 0.87"
*Height: 80 mm / 3.15"
*Weight: 550 g / 1.21 lb
*Wire Size Range: 10-25 mm² / AWG 8-4
*Crimp Dimensions (mm²): 10 mm²; 16 mm²; 25 mm²
*Crimp Dimensions (AWG): AWG 8; AWG 6; AWG 4
*Connector Type: Non-insulated connectors
*Crimp Profile: Indent-Crimp
*Compliance: DIN 46234
*Lifespan: 50,000 crimp cycles

Applications:
The KKB 1025 crimping tool is best suited for:
*Crimping insulated connectors between 10 and 25 mm² (AWG 8-4)
*Electrical panel assembly and service
*Industrial wiring harness production
*Field service and maintenance work involving consistent crimping of insulated connectors
