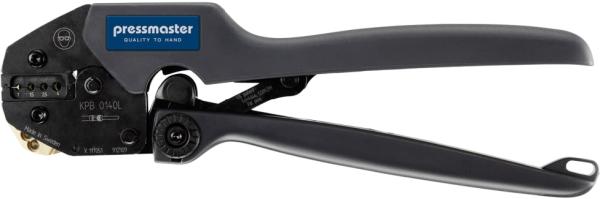

Pressmaster Crimping tool for Turned pin connectors, 0.5 - 4.0 mm², Square-Crimp, with locator

KPB 0140 L

KPB-0140L is a crimping tool for Turned pin connectors, 0.14 - 4.0 mm²/AWG 26-12, Square-Crimp, with locator.

*High strength, through hardened alloy steel construction
*Provides two-hand grip in the final phase of crimping, increasing comfort and productivity
*Unique mechanism significantly reduces hand force requirement over competing crimping tools
*Versatile and easy to customize for right hand or left hand users.
*Non-slip pad holds tool in place when leveraging on a work surface
*Full cycle crimp mechanism to ensure consistent, reliable crimp
*Ratchet release mechanism to clear miscrimps and obstructions
*Precision eccentric adjustment for consistent performance and ability to calibrate
*Hole in handle allows attachment of safety strap
*Each tool has a unique serial number for traceability.


TECHNICAL DATA
Length: 256 mm/10.08"
Width: 22 mm/0.87"
Height: 80 mm/3.15"
Weight: 610 gr/1.35 lb
Wire size: 0.14-4 mm2 / AWG 22-12
Crimp dimensions mm/mm2:
0.14 - 1 mm2/1.5 mm2/2.5 mm2/4 mm2
Crimp dimensions inch/AWG:
AWG 26 - AWG 18/AWG 16/AWG 14/AWG 12
Connector: Turned pin connectors
Description: For uninsulated turned pin connectors.
Life span, cycles: 50,000
