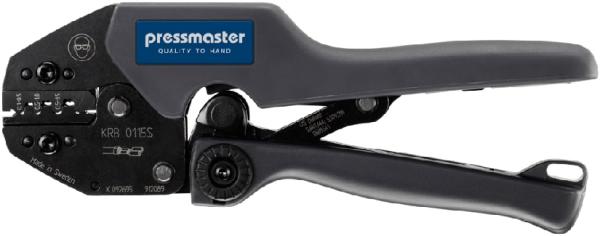

PRESSMASTER OPEN BARREL CRIMP TOOL (4300-3737)

The Pressmaster KRB-0115S is a precision crimping tool for open barrel, non-insulated terminals. Ideal for wire sizes between 0.1 and 1.5 mm² (AWG 26-16), it provides professional-quality B/F-style crimps with reliability and consistency. Ideal for electrical, automotive, and industrial applications, the tool features ergonomic design elements and hardened steel parts for long-term durability.

Key Features:
*Durable Steel Construction - Constructed from through-hardened alloy steel for extended tool life.
*Ergonomic Handle - Reduces hand fatigue and enhances comfort under repetitive use.
*Full-Cycle Ratchet Drive Mechanism - Delivers maximum crimps all the time with regulated force.
*Quick Release Clamp - Enables safe removal of partial or misaligned crimps by the operator.
*Adjustable Eccentric Cam System - Provides regular crimp pressure over the duration of the tool's life cycle.
*Non-Slip Pad Mount - Secures the tool in flat surfaces in operation.
*Traceable - Every unit is assigned a serial number for quality tracking.

Specifications:
*Manufacturer: Pressmaster
*Part Number: KRB-0115S
*Crimping Range: 0.1-1.5 mm² / AWG 26-16
*Crimp Profile: B/F-Crimp
*Compatible Connector Types: Open barrel non-insulated (2.8 mm and 4.8 mm)
*Crimp Dimensions mm/mm²: 0.1-0.5 mm² / 0.5-1.0 mm² / 0.5-1.5 mm²
*Crimp Dimensions inch/AWG: AWG 26-20 / AWG 20-18 / AWG 20-16
*Life Span: Minimum 50,000 crimp cycles
*Length: 204 mm / 8.03"
*Width: 22 mm / 0.87"
*Height: 76 mm / 2.99"
*Weight: 560 g / 1.23 lb

Applications:
*Electrical Installations - Crimping open barrel terminals on control panels and wiring harnesses.
*Automotive - Wiring repair, harness assembly, and terminal crimping on vehicles.
*Industrial Maintenance - Ideal for equipment service involving secure, non-insulated crimps.
*Aerospace & Defense - Employed in high-reliability applications where accuracy is imperative.
*Renewable Energy - Secure terminations in solar and wind power applications.
