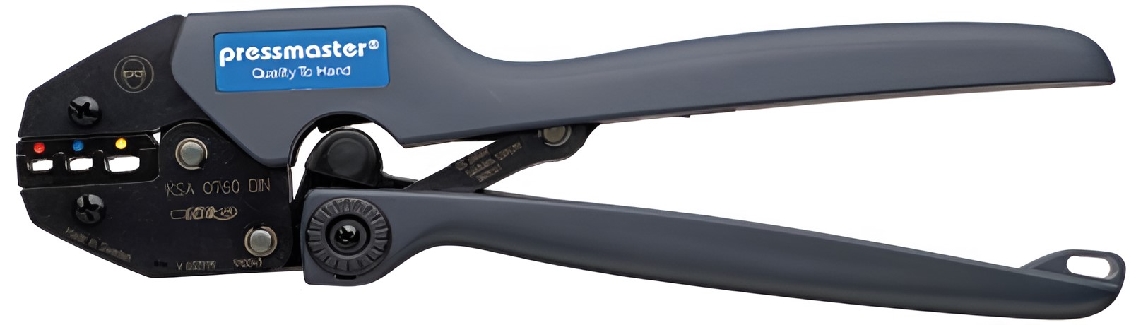

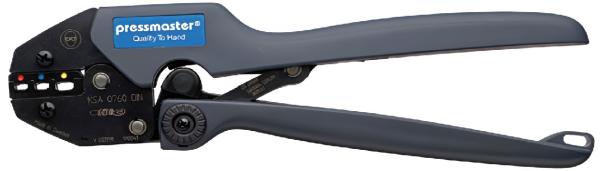

PRESSMASTER INSULATED MODEL CRIMP TOOL (4300-3769)

The Pressmaster KSA0760DIN is a commercial-quality insulated crimping tool designed with high accuracy and durability. Specifically developed for application with red, blue, and yellow pre-insulated terminals, it provides efficient oval-symmetric crimps over an extensive wire range of 0.5 to 6.0 mm² (AWG 20-10). Constructed in Sweden with a heavy-duty and ergonomic body, the tool is highly suitable for electricians, technicians, and manufacturing experts requiring repeat performance.

Key Features:
*Ergonomic Design: Comes in short and long handle forms to minimize user fatigue.
*Durable Construction: Constructed of through-hardened alloy steel for long life.
*Efficient Crimping: Less hand pressure than with traditional tools.
*Ambidextrous Use: Compatible with both left- and right-handed operators.
*Non-slip Pad: Provides stable tool positioning on work surfaces.
*Full-Cycle Crimp Mechanism: Provides full and uniform crimps.
*Safety Ratchet Release: Provides clearance of miscrimps or tool binding.
*Eccentric Adjustment: Provides precision through calibration capability.
*Unique Serial Number: Guarantees traceability and quality control.

Specifications:
*Manufacturer: Pressmaster
*Part Number: KSA0760DIN
*Crimping Range: 0.5-6.0 mm² / AWG 20-10
*Crimp Profile: Oval-Crimp Symmetric
*Crimp Dimensions (mm/mm²):
0.5-1.5 mm² (red)
1.5-2.5 mm² (blue)
4-6 mm² (yellow)
*Crimp Dimensions (inch/AWG):
AWG 20-16 (red)
AWG 16-14 (blue)
AWG 12-10 (yellow)
*Connector Type: Insulated connectors
*Description: For pre-insulated red, blue, and yellow connectors
*Life Span: 50,000 cycles
*Length: 256 mm / 10.08"
*Width: 22 mm / 0.87"
*Height: 80 mm / 3.15"
*Weight: 559 g / 1.23 lb

Applications:
*Electrical Installations: Ideal for residential, commercial, and industrial wiring.
*Automotive Wiring: Forms high-performance electrical connections in automotive systems.
*Control Panels: Ideal for precise terminations in panels and enclosures.
*Maintenance and Repair: Reliable tool for field technicians and electricians.
*Manufacturing & Assembly: Great for reliable crimping in manufacturing processes.
