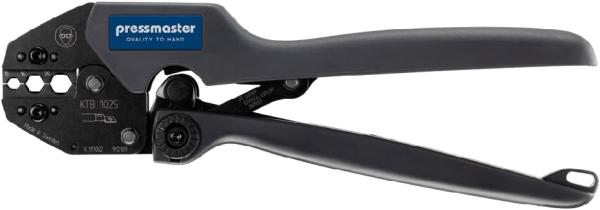

PRESSMASTER CRIMP TOOL 10-25MM HEX (4300-3701)

The Pressmaster KTB 1025 is a precision-crafted crimping tool for use with non-insulated copper tube connectors, accommodating wire sizes from 10 mm² to 25 mm² (AWG 8 to 4). It has a HEX crimp profile and meets DIN 46235 standards. Constructed from through-hardened alloy steel, the tool provides long-term reliability, precise performance, and ergonomic handling for professional electrical and industrial use.

Key Features:
*Long-Lasting Construction: Constructed of through-hardened alloy steel for increased strength and durability.
*Ergonomic Handle: Built for comfortable operation by right- and left-handed individuals.
*Full-Cycle Mechanism: Ensures a full crimp every time for repeatable performance.
*Ratchet Release: In-built mechanism to clear miscrimps and tool jams.
*Adjustable Eccentric Cam: Facilitates accurate calibration and performance adjustment.
*Stability Pad: Non-slip pad provides secure positioning when placed on work surfaces.
*Tool Identification: Each unit features a distinct serial number for tracing and quality control.
*Safety Ready: Features a hole to enable attaching a safety strap.

Specifications:
*Manufacturer: Pressmaster
*Part Number: KTB 1025 (4300-3701)
*Country of Origin: Sweden
*Length: 256 mm / 10.08"
*Width: 22 mm / 0.87"
*Height: 80 mm / 3.15"
*Weight: 550 g / 1.21 lb
*Wire Size Range: 10-25 mm² / AWG 8-4
*Crimp Dimensions (mm²): 10 mm², 16 mm², 25 mm²
*Crimp Sizes (AWG): AWG 8, AWG 6, AWG 4
*Connector Type: Non-insulated copper tube connectors
*Crimp Profile: HEX Crimp
*Compliance: DIN 46235
*Lifespan: 50,000 crimp cycles

Applications:
The KTB 1025 crimp tool is best suited for:
*Crimping non-insulated copper tube connectors from 10 to 25 mm² (AWG 8-4)
*Electrical cabinet and panel installations
*Industrial and commercial wiring harness manufacturing
*On-site maintenance and repair work requiring consistent, repeatable crimps
