Lindstrom Micro Bevel Cutter

Lindstrom Micro Bevel Cutter PRODUCT: LIN8146.
Lindstrom Micro Bevel Cutter
Request a quote
Unit: Each
Arriving Soon: 0
Available Now: 0
Availablity: Delivery Usually 5-7 Days - Contact Us For Updated Pricing and Availablity

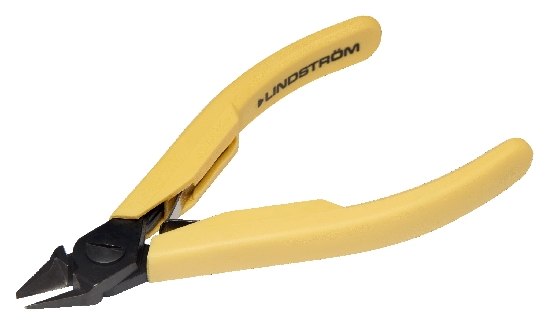

The Lindstrom 8146 Micro-Bevel® Precision Cut Diagonal Cutter is expertly crafted with a tapered and relieved head and an ESD-safe mono-material handle. This model is specifically designed for high-precision trimming in tight or confined spaces. The Micro-Bevel® cutting style ensures minimal lead protrusion, ideal for electronics assembly, wire harness work, and detailed rework tasks.

Features:
*Crafted from high-performance alloy steel for outstanding strength and precision.
*Cutting edges are induction-hardened to 63-65 HRC for superior durability and edge retention.
*ESD-safe mono-material synthetic handles with integrated leaf-return springs offer both comfort and static protection.
*Precision screw joint reduces friction and ensures consistent alignment of cutting edges.
*Tapered and relieved head design enhances access in cramped or obstructed work areas.
*Micro-Bevel® cut delivers precise trims with minimal protrusion for clean, controlled cuts.
*Numerically-controlled CNC grinding ensures accuracy, reliability, and uniform tool performance.

Specifications:
*Manufacturer: Lindstrom
*Part Number: 8146
*SKU: LIN8146
*Type: Micro-Bevel® Precision Cut Diagonal Cutter with Tapered & Relieved Head & ESD-safe Handle
*Material: High-performance alloy steel, burnished finish
*Edge Hardness: 63-65 HRC (induction-hardened)
*Handles: ESD-safe mono-material synthetic with leaf-return springs
*Joint: Precision screw joint
*Cutting Style: Micro-Bevel®
*Cutting Capacity: 0.2-1.0 mm solid copper wire (approx. 0.01-0.04 in)
*Overall Length: 110.5 mm (4.33 in)
*Head (Jaw) Length: 10 mm (0.39 in)
*Head Width: 10 mm (0.39 in)
*Head Thickness: 6 mm (0.24 in)
*Tip Width: 0.8 mm (0.03 in)
*Weight: 46 g

Uses:
*Electronics assembly and PCB work: Enables precise trimming with minimal leftover lead for optimal soldering results.
*Wire harness fabrication: Tapered head and Micro-Bevel® cutting style offer excellent precision in tight cable configurations.
*Fine-detail and rework tasks: Ideal for trimmed leads and wires in constrained areas, such as connector pockets or high-density boards.
*Static-sensitive environments: The ESD-safe design protects sensitive components from electrostatic discharge.
*Repetitive professional use: Ergonomic handles and reliable edge retention support consistent performance and reduce fatigue during frequent use.
